Project Name: Poniente Edificio Vista 360
Location: Av. Alonso de Córdova N° 4580, Las Condes, Santiago, Chile
Used as : Wall Cladding Mesh
Project time: Year 2018
Product data:

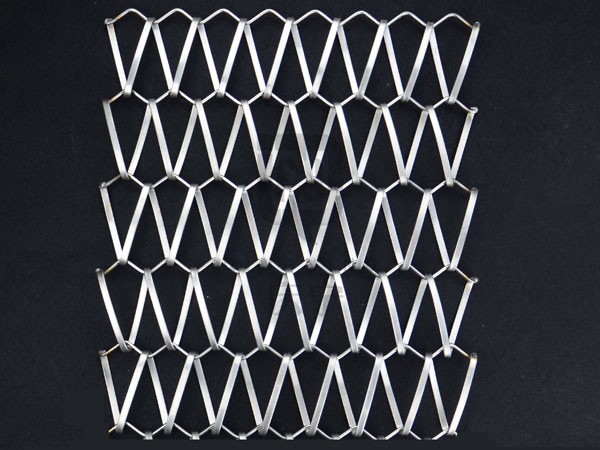

Type: RMJ-7651
Flat Spiral Wire: 5mm×1.5mm
Spiral Wire Pitch: 38mm
Crossed Wire Diameter: 3mm
Crossed Wire Pitch: 65mm
Weight: appr.4.7kgs/m2
Project Mesh Quantity: 3668.4 m2
Accessories:Stainless steel round bar with eyebolts & nuts.

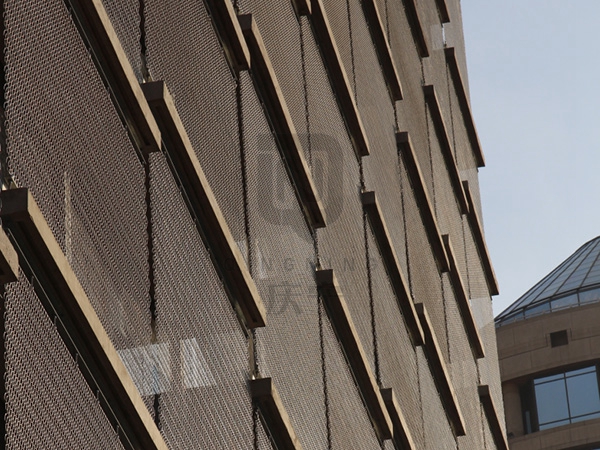

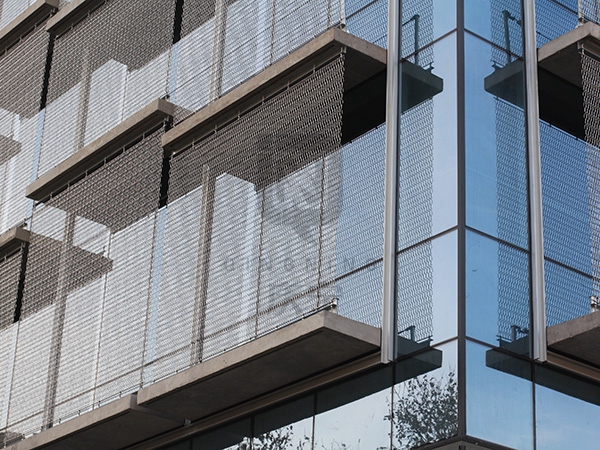

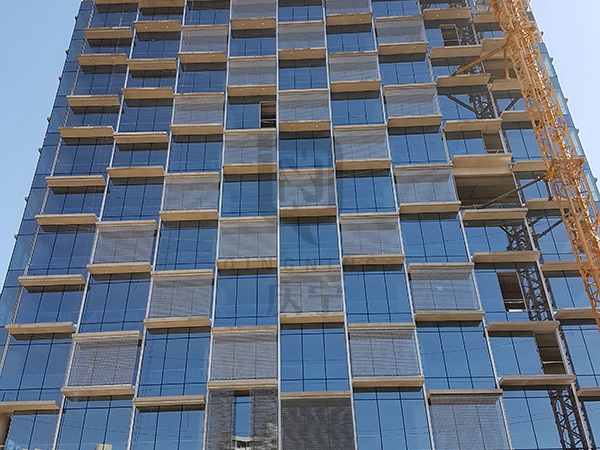

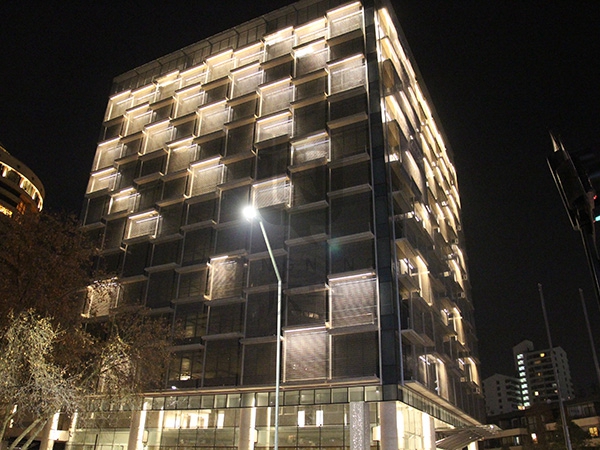

This project is used our mesh type RMJ-7651, it is used for building facade cladding. The up and down windowsills with the weaved flat mesh make the whole buildings more unique. The view of the building in the sunlight, it highlights its commercial atmosphere,even in the night.
