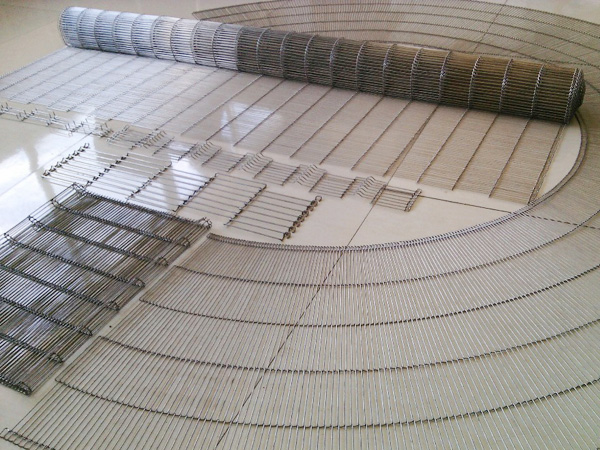

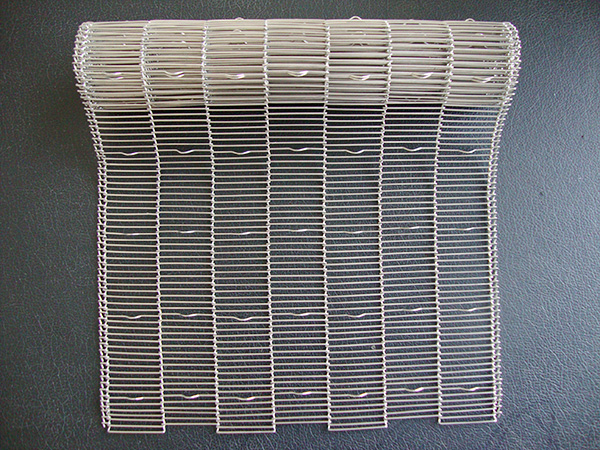

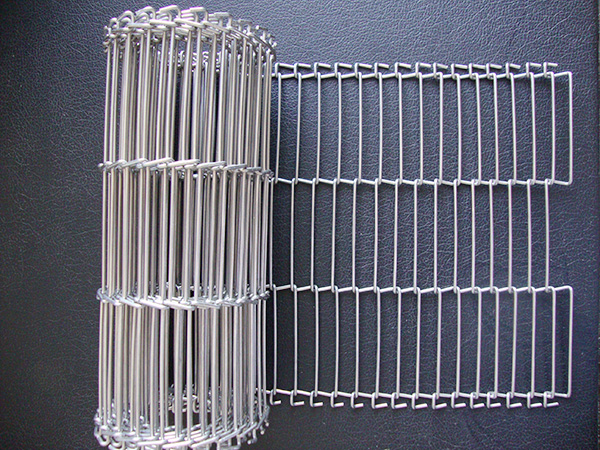

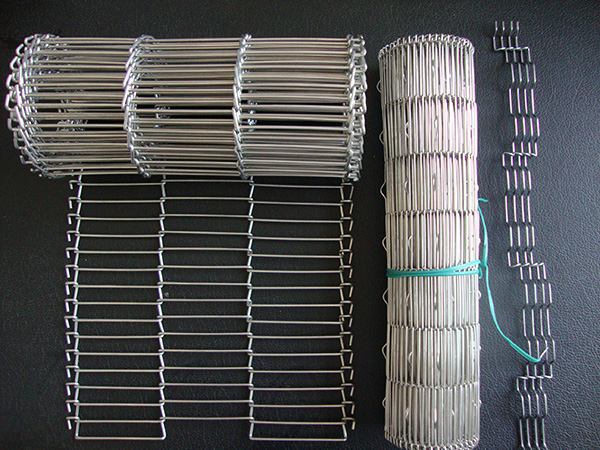

Flat flex belts are used in many industries. The belts have a light weight single layer construction and are positively driven by sprockets. The belts have an open structure (70 - 85 % open) and are mainly used in cooling, frying,baking, drying, heating, decorating, battering and packing machines for light products.
Flat flex belts are used in many industries. The belts have a light weight single layer construction and are positively driven by sprockets. The belts have an open structure (70 - 85 % open) and are mainly used in cooling, frying,baking, drying, heating, decorating, battering and packing machines for light products.
Advantages
1. Oil-Resistant, Acid And Alkali Resistant, Tear-Resistant, Heat-Resistant, Cold-Resistant, Wear-Resistant
2. Open mesh construction for quick drainage and free air circulation.
3. A smooth, flat surface.
4. Sanitary -- easily cleaned.
5. Easy replacement of damaged or worn sections.
6. Endless splicing.
7. Economical versus alternative metal conveyor belts.
8) High strength.
Materials available: SUS201,SUS304,SUS316,etc
Water washing or electrochemical polishing.
Wire Diameter:0.9mm,1mm,1.2mm,1.6mm,2mm,2.35mm, 2.5mm,etc
Rod pitch: 4.2mm,6mm,8mm,10mm,12mm,or customized
The mini spiral pitch: 3mm. Opening area: 67.5% to 86%.
Width: 0.1m,0.5m,1m,1.7m,2.1m,etc.
Length: 5m/roll,10m/roll,etc

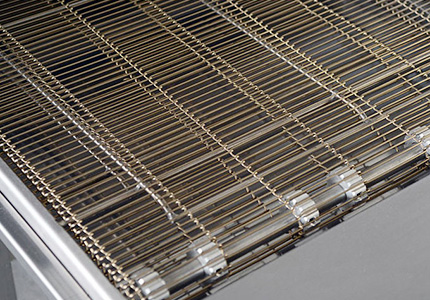

Chain,baffle & gear: Available
Application: food industry
Ladder conveyor belt shape: standard, curved, convex, concave.
Speed: from less than 1 m/min to 20 m/min. (High speed quicker than 20 m/min may affect the longevity of the conveyor belt).
Temperature range: -100 °C to 300 °C.
Edge type: S-hook edge, chain link edge, U-shaped link edge.

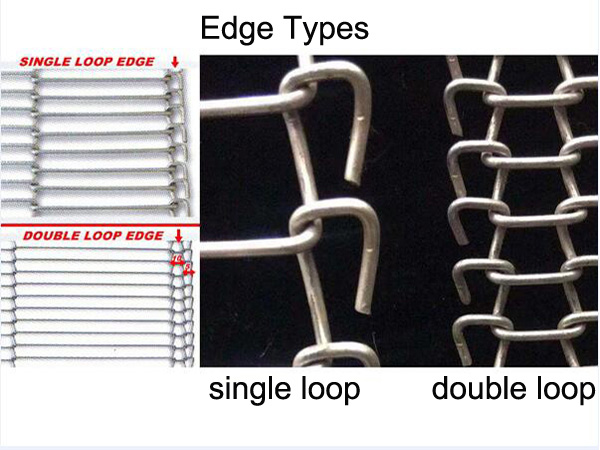

Edge type: single loop edge, double loop edge, C-shaped loop edge.

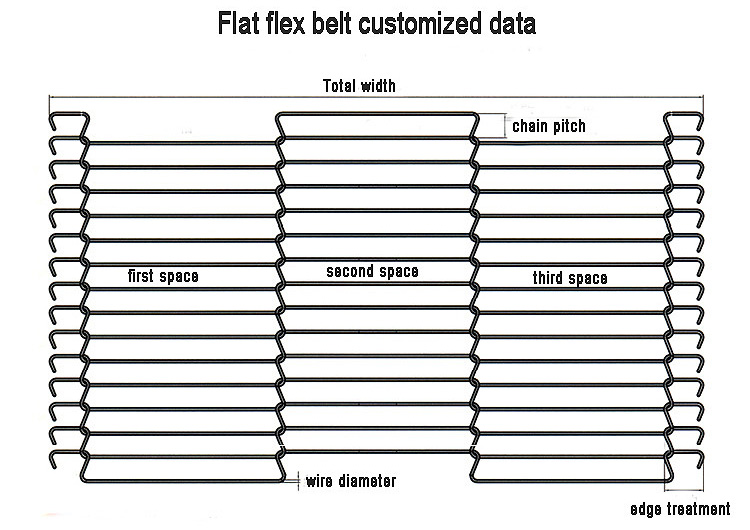

Please note below Parameters showed on the next picture when you ask for a quotation:
1. Length and Width of Overall Belts
2. Wire Diameter and Loop Width
3.Center Pitch and Pitch
4. Single Loop Edge or Double Loop Edges
5. Material
Connectors:
Wire Loop conveyor belts can be equipped with integrated flights or tips, or levels for fixed product spacing. The belt can be made endless simply by pinching shut a connector or by weaving in a pre-bent wire.

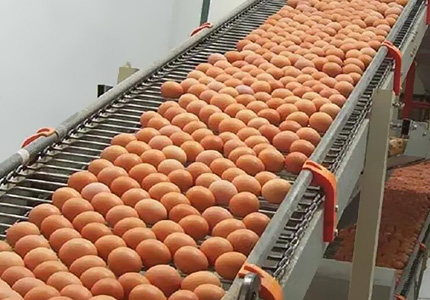

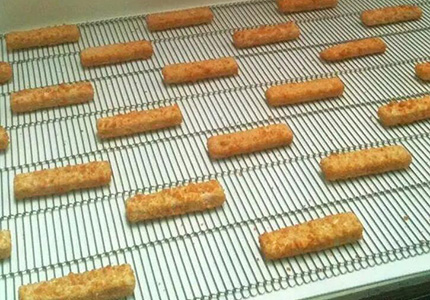

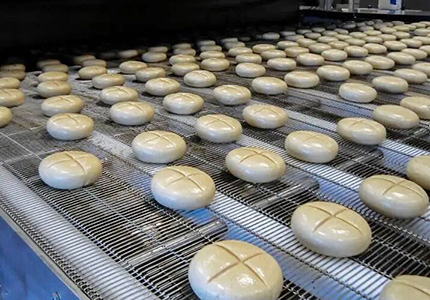

This flat flex belts are often used in conveyors for the food industry for the production of:
snacks; fish; pizzas; vegetables; bread;
pastry; meat; candy; (small)
potatoes;
biscuits; chocolate; nuts and fruits, etc.
Heat resistant Stainless steel conveyor belt wire mesh belt for food drying
