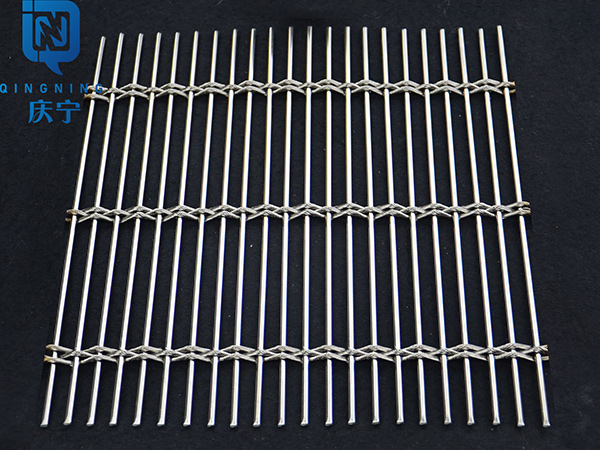

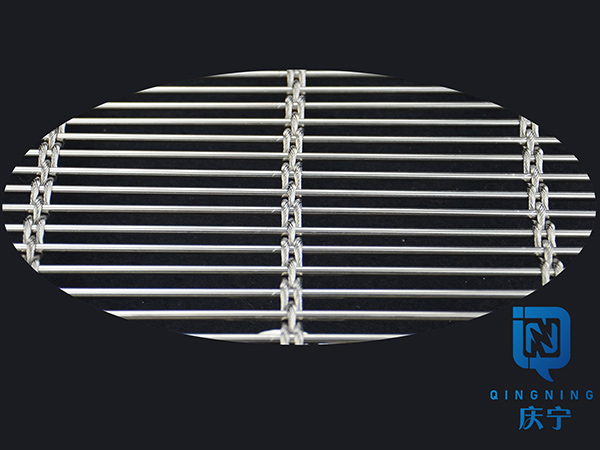

Architectural Flexible Mesh RMJ-3810 is consist of 3 groups thicker cables and rods. It is one of the top ten best-seller decorative wire meshes in QingNing Mesh. Each cable structure is 1*19, one cable can bear 3.1KN strength, 3 groups cables can bear about 9.3KN strength, so it will have a high strength in the vertical directions.
Architectural Flexible Mesh RMJ-3810 is consist of 3 groups thicker cables and rods. It is one of the top ten best-seller decorative wire meshes in QingNing Mesh. Each cable structure is 1*19, one cable can bear 3.1KN strength, 3 groups cables can bear about 9.3KN strength, so it will have a high strength in the vertical directions. Flexible and strength make the architectural mesh suitable for wall cladding, partitions and ceilings with more shapes. Our company has 5 sets of flexible cable mesh machines for supply the demands our clients, the max. width of cable mesh will be 8 meters.
CHARACTERISTICS:
Flexible, strong, durable, beautiful, nonflammable, easy to install.
This type of architectural flexible mesh can be made of stainless steel, cooper, aluminum alloy wire, mild steel wires or mixed weaved.
Surface Finish:
1. PVDF coating(lacquer coating): mesh size can be bigger,suggest within 2mX12m.
2. Titanium PVD coating: mesh size limit within 1.8m X 4m.
3. Mixed weaved, just Ti-plating the rods. The mesh size is not limited, suggest width within 3.5m and length within 20 meters.
| SPECIFICATION FORM | ||||||||
| NO.S | Open Area% | Cable No.s | Cable Dia.(mm) | Cable pitch(mm) | Rod Dia.(mm) | Weft wire pitch(mm) | Thickness(mm) | Weight(kg/m2) |
| RMJ-3810 | 65 | 3 | 2 | 80 | 3 | 10 | 6 | 6.6 |
Remarks:

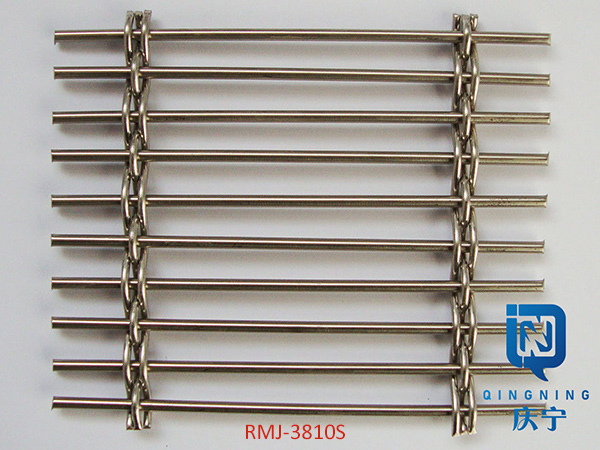

★ The cable can be changed into SS wire, then it can be produced as flat panels.
★This mesh can be mixed weave with colorful Ti-plating wire and stainless steel cable.
★The mesh size can be custom-made.
★Suggest width: within 4 meters.
★Suggest Length: within 20 meters
★Installation: with eye-bolt and round bar, frame and so on.

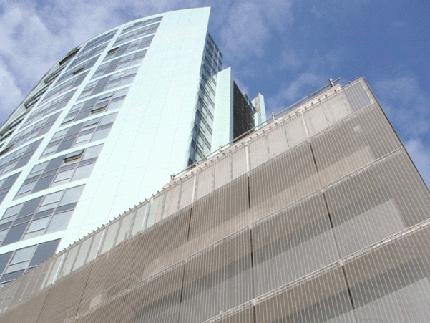

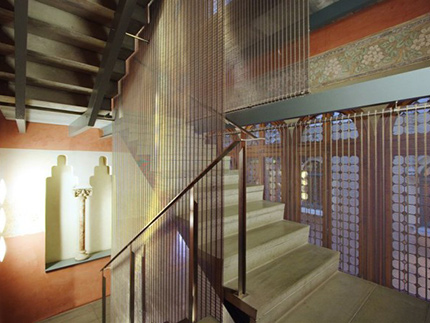

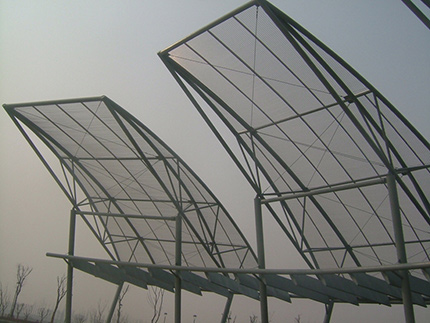

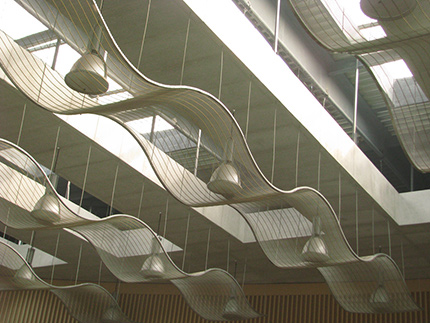

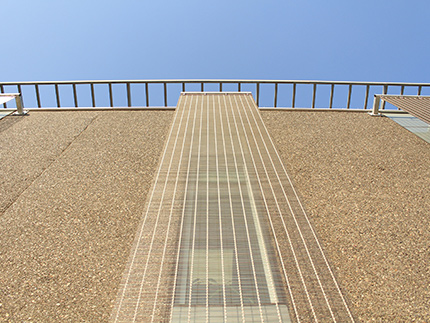

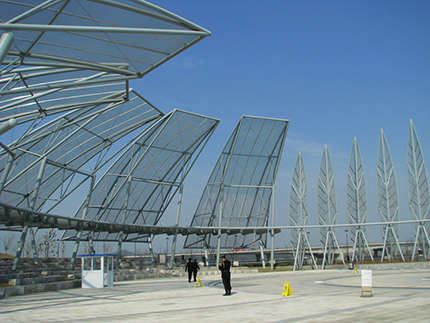

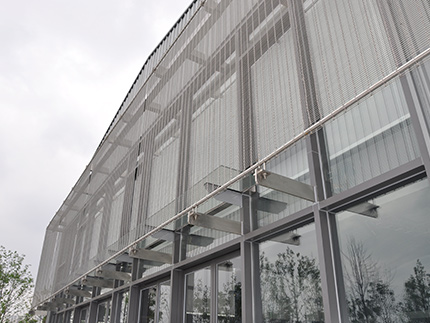

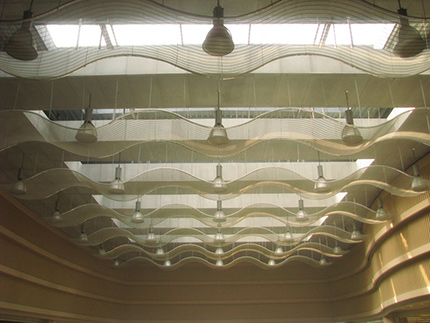

Flexible wire mesh 3810 has a wide range of usages, it mainly applied for wall facades, ceilings, partitions, stair protection wall and screens in five-star hotel, office, superstore, office building, transportation junction and other large-scale public sites. Under different angles, time and different environments, it can show you a abundant visual effects.

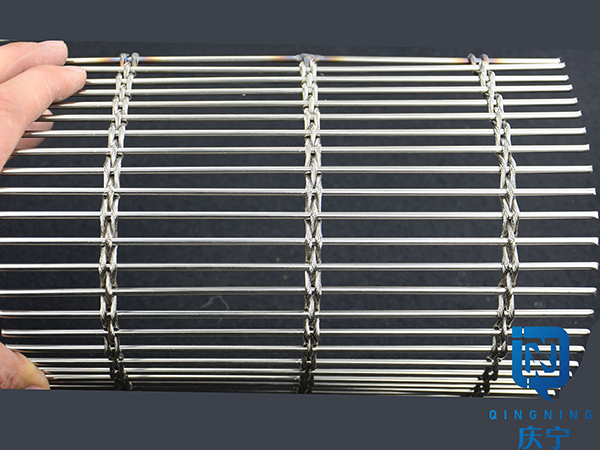

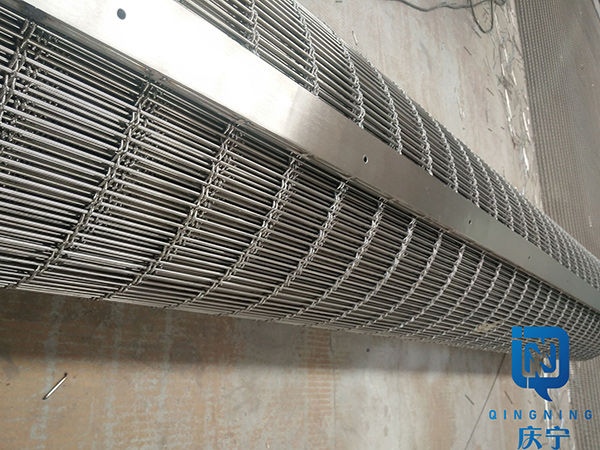

Package: Usually this type of mesh can be rolled, we pack it with fumigation-free case or metal case.
Production Time: we finished the 100 sq.m mesh within 15-20 days.
Delivery : Shipping by express:Available: Fed-ex, DHL, TNT, EMS and so on, will about 3-7 days
Shipping by air: will about 2-3 days
Shipping by sea: about 15-35 days.
