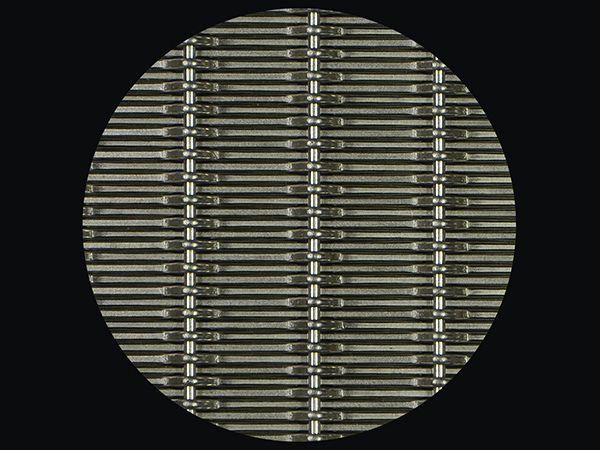

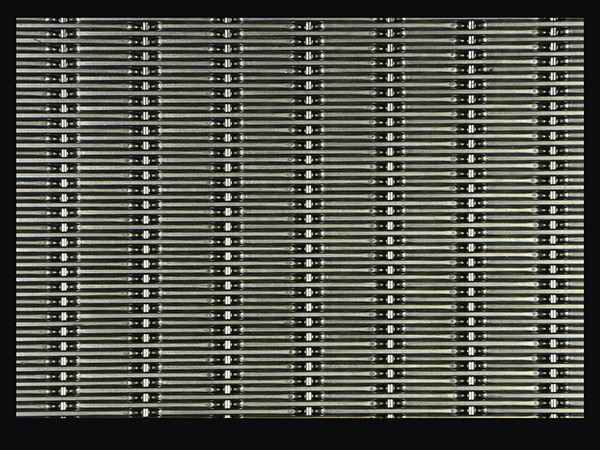

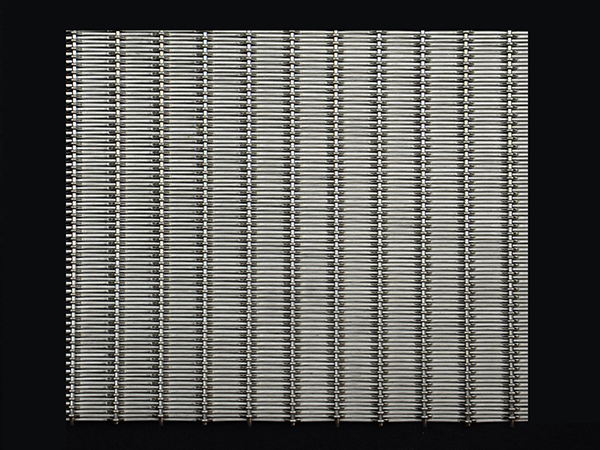

NO.S: RMJ-1530S
Opening area: 0
Cable Dia.: 2mm×1group
Cable pitch: 17.5mm
Rod Dia.: 1.5mm
Rod pitch: 1.5mm
Weight: About 10.98kg/㎡
Usage: elevator cab mesh, wall panel, furniture panels, etc.
Stainless steel lift screen also called elevator cab mesh, is widely used in elevator car, elevator hall wall and lobby background in the wall decoration. Different wire, different weaved patterns, metal color, unique metallic texture of copper or stainless steel, all giving the elevator car or interior wall a high-end and amazing aesthetic interest.
Characteristics:
Unique surface,compact design, fire retardant,antioxidant,colorfully, easy to install.
Elevator cab mesh RMJ-1530S can be made of stainless steel , cooper, brass wire ,aluminum alloy wire or mixed weave.
It can be hairline processing, also available with lacquer coating, PVDF coating,Titanium PVD coating( limited with 1.8mx3.5m) or copper plating.

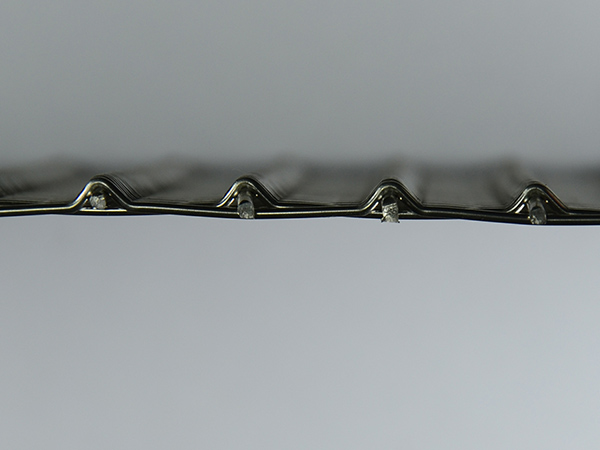

| NO.S | Open area % | Warp Wire Dia.(mm) | Warp Wire Pitch (mm) | Weft wire Dia.(mm) | Weft Wire Pitch (mm) | Thickness (mm) | Weight (kg/㎡) |
| RMJ-1530S | 0 | 2 | 17.5 | 1.5 | 1.5 | 3.7 | 10.7 |
Remarks:
★ The Round wire can be changed into cables, then it is soft and can be bent, It is our another type mesh called RMJ-1530.
★This mesh can be mixed weave with copper and stainless steel wire.
★The mesh size can be custom-made.
★Suggest width: within 4 meters.
★Suggest Length: within 10 meters
★Installation: with frame.

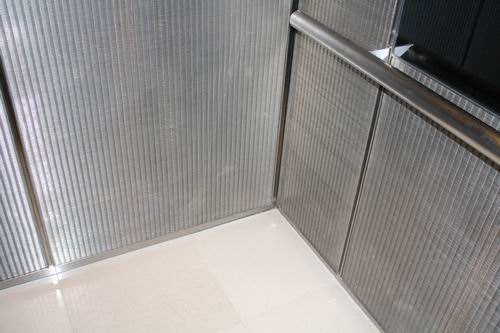

This type of elevator cab mesh are mainly used as elevator cab cladding or wall cladding interior decoration in buildings.
Package: Usually this type of mesh is used as panels, we can packed it with pallets.
Production Time: we finished the 100 sq.m mesh within15 days(advance if possible).
Delivery : Shipping by express:Available by Fed-ex, DHL, TNT, EMS and so on, shipping time is about 3-7 days.
Shipping by air: will about 3-4 days
Shipping by sea: about 15-35 days.
