NO.S: RMJ-6517
Warp wire Dia.: 2mm, Warp wire pitch: 8mm
Weft wire Dia.: 1.5mm, Weft wire pitch: 1.5mm
Weight: appr.12.7kg/㎡. Standard size: 1.22mx2.44m

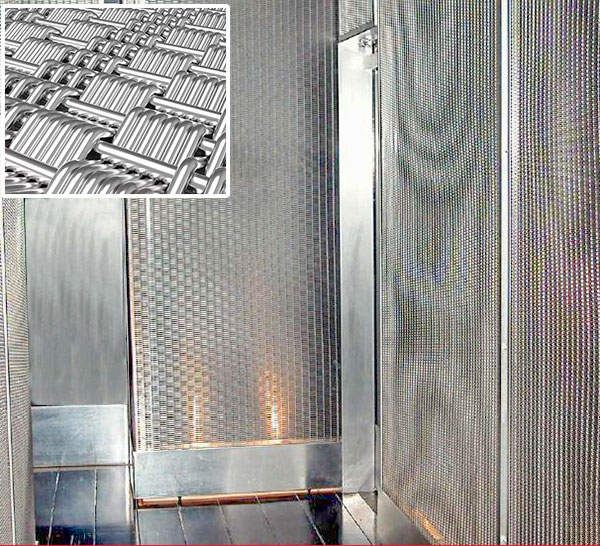

As an integral part of interior ecoration, Qingning decorative meshes are installed in the elevator cabs for modernization renovation and cladding to offer a flat, smooth yet textured appearance to the elevator cab and add an appealing feel to the elevator. Featured by beautiful, durable and maintenance free, the metal mesh is a highly durable material that can hold up to the elevators' heavy use.
Stainless steel woven wire mesh as an elevator cab cladding panels usually are made of AISI 304, , AISI36, AISI16L or mixed weaved with stainless steel wire and copper wire.

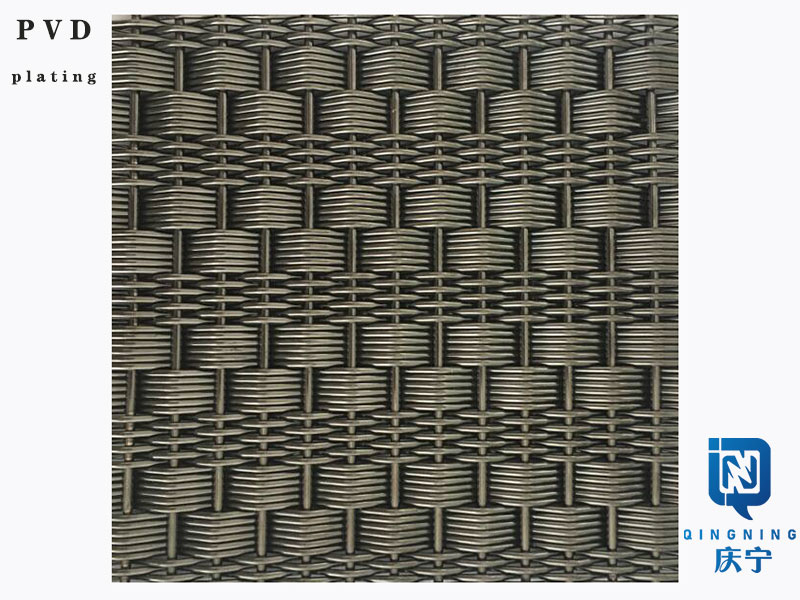

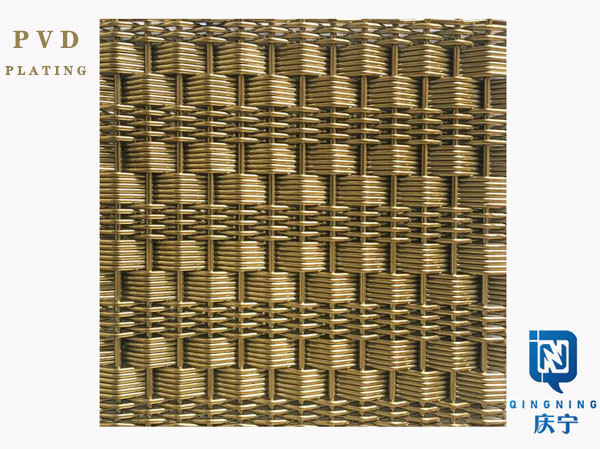

Stainless steel woven mesh as an elevator cab panels usually keep the nature metal colors, sometimes clients requried it with Ti-plating colors; some times it is weaved with stainless steel wire and copper wire. It all depands on the clients' requirements.
| NO.S | Warp wire | Warp wire pitch | Weft Wire Dia. | Weft Wire pitch | Weight |
| RMJ-6517 | 2.0 | 8 | 1.5 | 1.5 | 5.77kg/m2 |
Stainless steel woven mesh are mianly used as a cladding panels in the elevator interior cabs or wall claddings out of the elevators.
