Spiral Flat Wire Mesh RMJ-7515

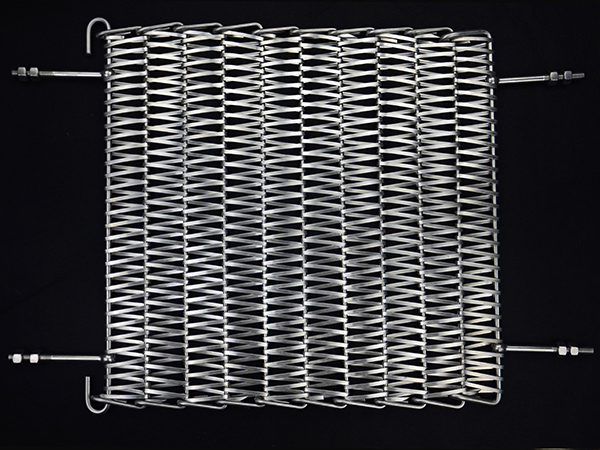

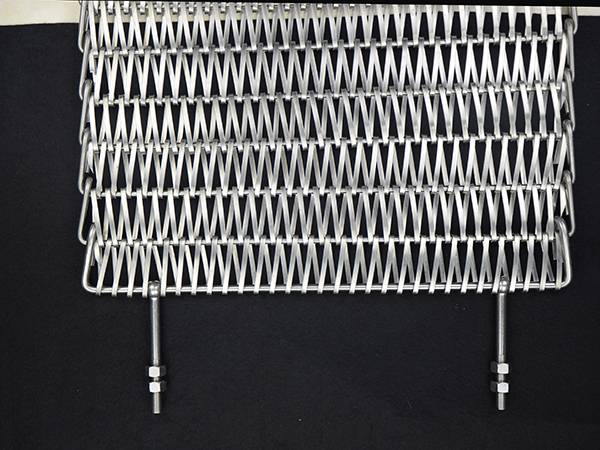

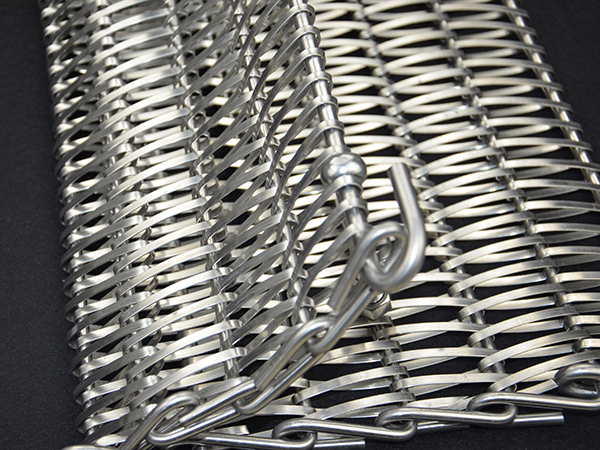

Spiral Flat Wire Mesh RMJ-7515 is made of high quality stainless steel flat wires and rods. The flat wire or rods can be crimped or straightened first and then be assembled together.The edge is locked by the crossed wire, it can bear the mesh weight well. The flat spiral wire with a arc belly make the whole mesh an unique shape. Arc flat wires sharing the weight uniformly on the rods, so we can just hanging the top rods, then the whole mesh can be hold. The length and the width is not limited ,but considered the loading and package and delivery, we suggest within 4 meter width and 20 meter length.

CHARACTERISTICS:

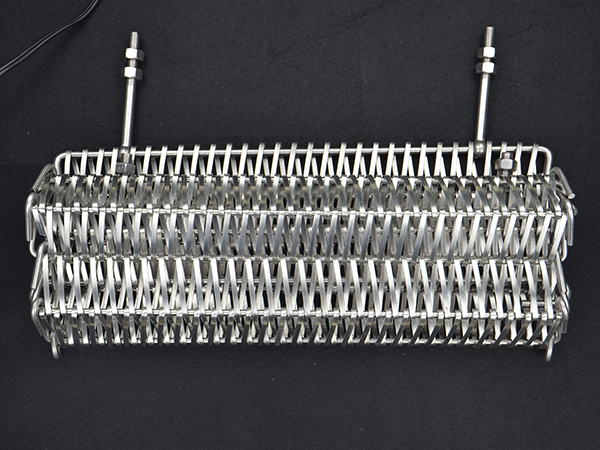

★ Flexible: It can be bent installed width different shapes trough making a bent support rods.

★ More strong：Our mesh are light weight and the eye-bolt can bear the whole mesh weight.

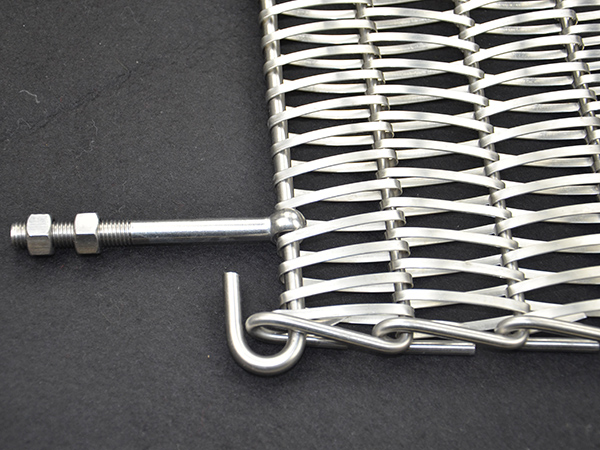

★ Easy to installation: You just to making a metal structure or metal keel for inserting our eye-bolt.

★Nonflammable & Rustless: Our Metal mesh are made of stainless steel wire, it can’t be rust and flaring.

★Beautiful: It is more beautiful types mesh for interior or outer decoration in building.

Materials

This type of architectural mesh can be made of stainless steel , cooper, aluminum alloy wire or mild steel wires.

Finish

Surface Finish:

1. General lacquer coating: suggest in the interior decorations, cheaper cost and can’t drop color.

2. PVDF coating(fluorocarbon lacquer) : can be keep at least 8 years not drop color

3. Titanium PVD coating: The most expansive . color bright and it can keep about at least 9 year. But the width limited into 1.8m, length is no limited)

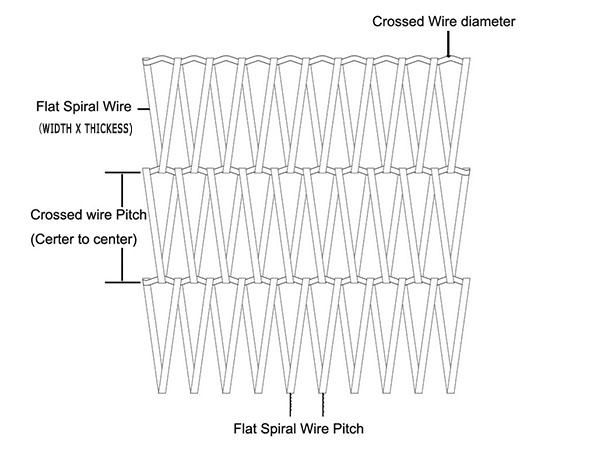

Specificaiton

Item No.：RMJ-7515

Open Area: appr. 33%

Flat Spiral Wire.: 5mm×1mm

Spiral Wire Pitch: 15mm

Crossed Rod Dia.: 5mm

Cross Rod Pitch: 50mm

Weight: appr. 9.65kg/m²

Max. Width: 11.5meters, Suggest width: within 4 meters

Max. Length: 20 meter, Suggest width: within 20 meters

Remarks:

1. The wire size and opening size can be custom-made.

2. Please consider the installation and package when you design the panel size.

3. We can supply you the installation accessories if you need.

4. The color can be custom-made according to customers’ requirement.

Applications

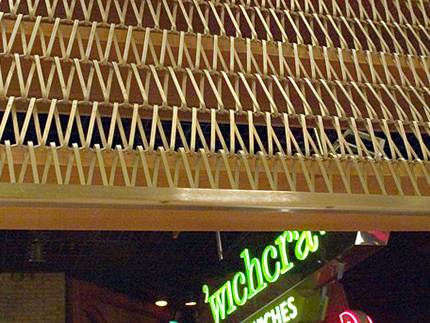

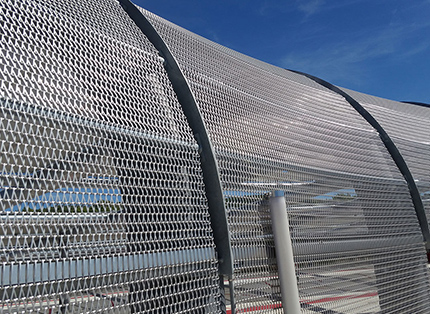

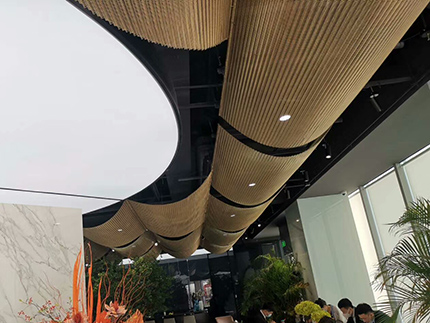

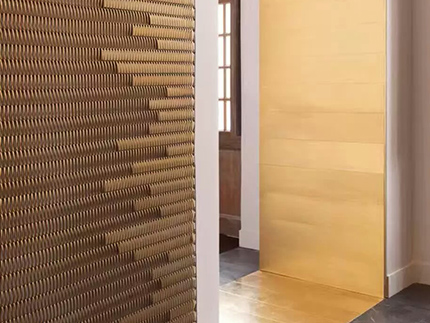

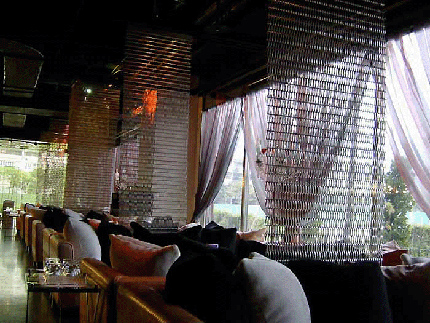

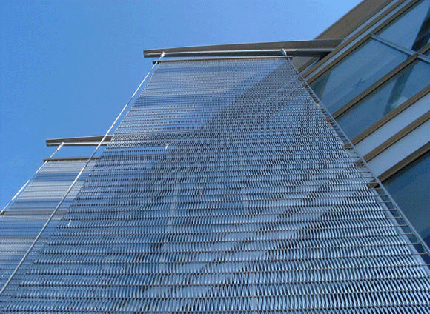

This type of metal mesh are mainly used as wall cladding mesh, ceiling mesh,sunshade mesh, room divider mesh inner or out of buildings and so on.

Service

★Samples: Available.

★Package: Usually this type of mesh can be rolled, we pack it with fumigation-free case or metal case.

★Production capacity : 1300 SQ.M per Month.

★Delivery : Shipping by express:Available: Fed-ex, DHL, TNT, EMS and so on, will about 3-7 days

Shipping by air: will about 2-3 days

Shipping by sea: about 15-35 days.
