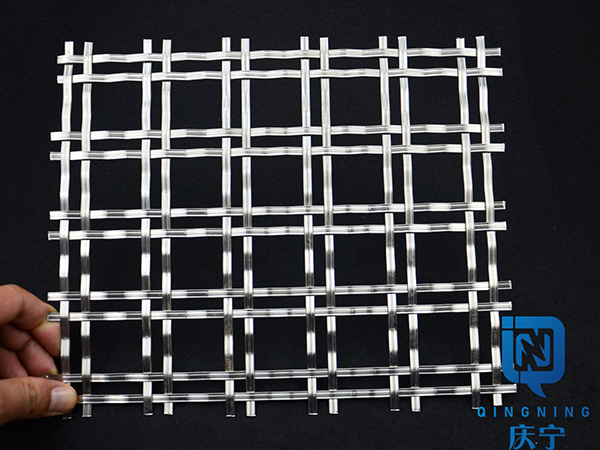

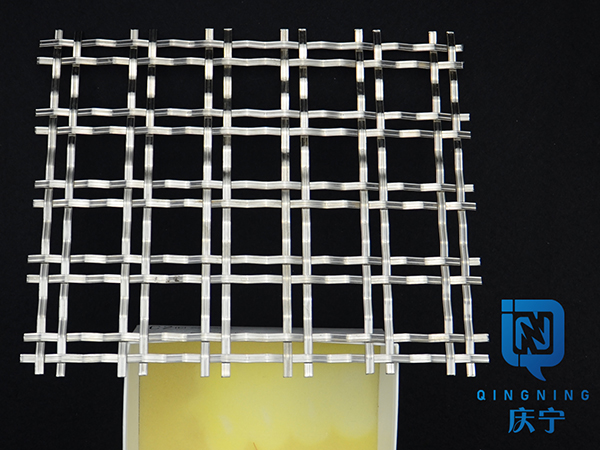

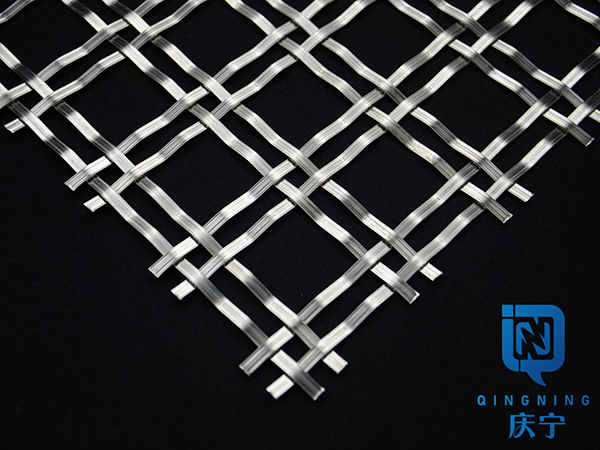

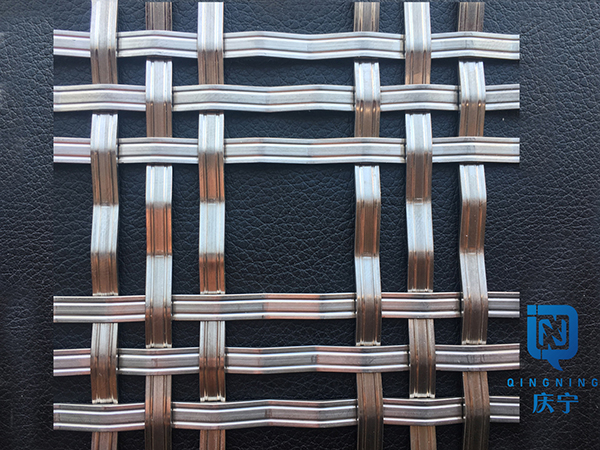

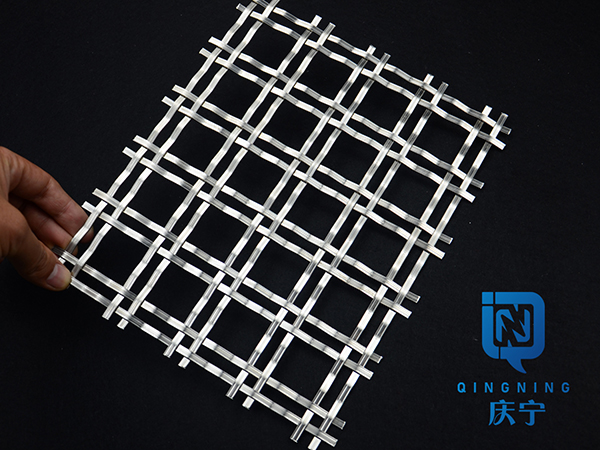

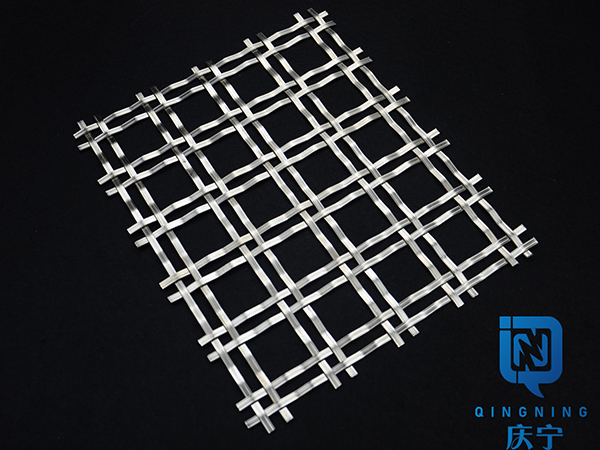

Architectural wire mesh RMJ-8485 is a new type crimped wire mesh. The 5mm width flat wire is with two long grooves, double wires alternately weaving constitute one smaller hole and one big holes. This type of mesh mainly be cut slant and with different colors, it is more beautiful and elegance. It is mainly used as ceiling panels, showcase panels, partition panels or cladding wall materials in buildings.
Architectural wire mesh RMJ-8485 is a new type crimped wire mesh. The 5mm width flat wire is with two long grooves, double wires alternately weaving constitute one smaller hole and one big holes. This type of mesh mainly be cut slant and with different colors, it is more beautiful and elegance. It is mainly used as ceiling panels, showcase panels, partition panels or cladding wall materials in buildings.
There is one changed style, we called RMJ-8505, it is made of 3 flat wires with 3 holes.
CHARACTERISTICS:
Smoothness, strength flat, fireproofing, colorfully, easy to install.
This type of architectural mesh can be made of stainless steel , cooper, brass wire , aluminum alloy wire.
Surface Finish: PVDF coating colors , Titanium PVD coating colors or copper coating.
| NO.S | Warp Wire | Warp wire Pitch | Weft wire | Weft wire pitch | Thickness | Weight (kg/㎡) |
| RMJ-8485 | 5mm×1mm | 48mm | 5mm×1mm | 48mm | 3mm | 4.5 |

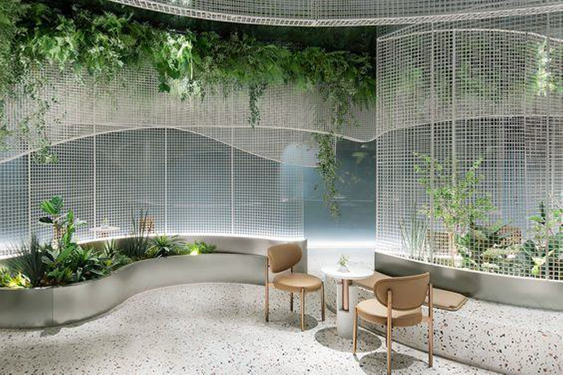

RMJ-8485 architectural mesh mainly be cut slant and with different colors, it is more beautiful and elegance. It is mainly used as ceiling panels, showcase panels, partition panels or cladding wall materials in buildings.
Samples: Small samples are free(12x10cm), bigger samples will be charge, sample fees can be returned if your big order is placed.
Package: Usually this type mesh can be used as panels, we pack it with Fumigation-free pallet or metal pallets. .
Production Time: we finished the 100 sq.m mesh within 15 days.
Delivery : Shipping by express:Available: Fed-ex, DHL, TNT, EMS and so on, It will about 3-7 days
Shipping by air: will about 3-4 days
Shipping by sea: about 15-35 days.
