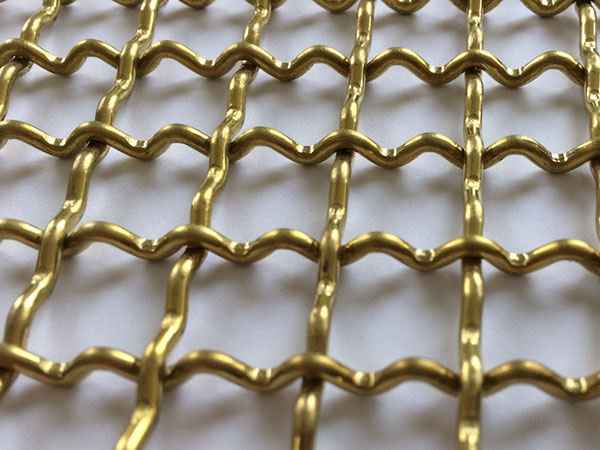

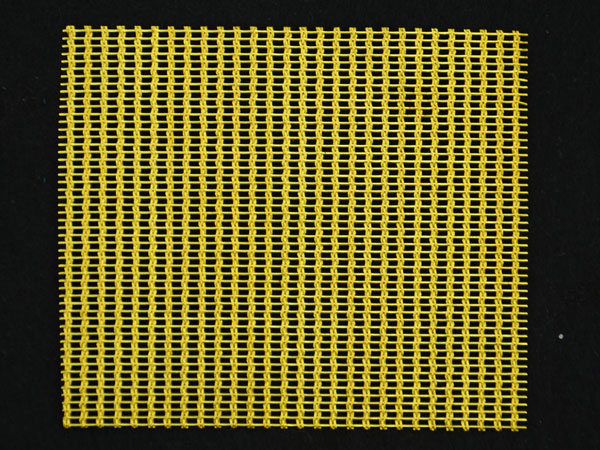

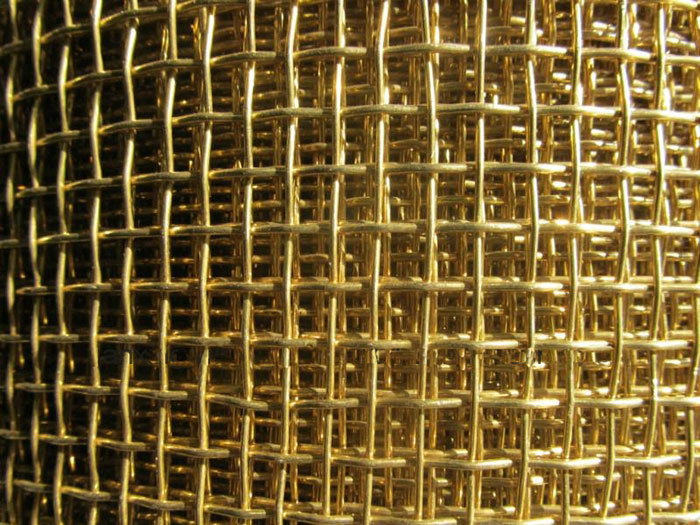

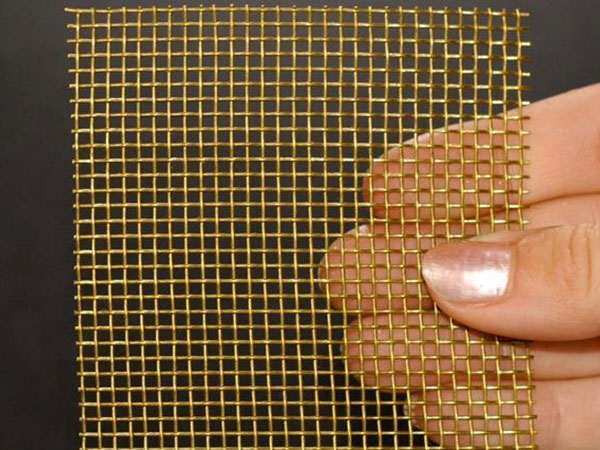

Brass Woven Wire Cloth

Brass woven wire cloth is also called paper-making cloth. It is made of 65% copper and 35% zinc.

Paper-making cloth is made of phosphor bronze wire in the wrap, which has outstanding tension stress, bending force, wear resistance and expansion force and brass wire in the weft, which has proper tension stress and extensible.

MESSAGE

DETAILS

Brass woven wire cloth is also called paper-making cloth. It is made of 65% copper and 35% zinc.

Mesh refers to the wire quantity per inch. The fewer mesh, the bigger aperture size and better water permeability.

Features

· Good tension stress.

· Good extensibility.

· Resistance to the acid and alkali.

Materials

Material: H65, H70,H 90 brass wire.

Finish

No Finishing.

Specificaiton

· Aperture size: 1 mesh to 200 mesh.

Newsprint and printing paper with 60 to 70 mesh and the typing paper with the 90 to 100 mesh.

Weaving method: plain weave.

· Width of brass mesh/cloth: 0.5-2 m (can be customized).

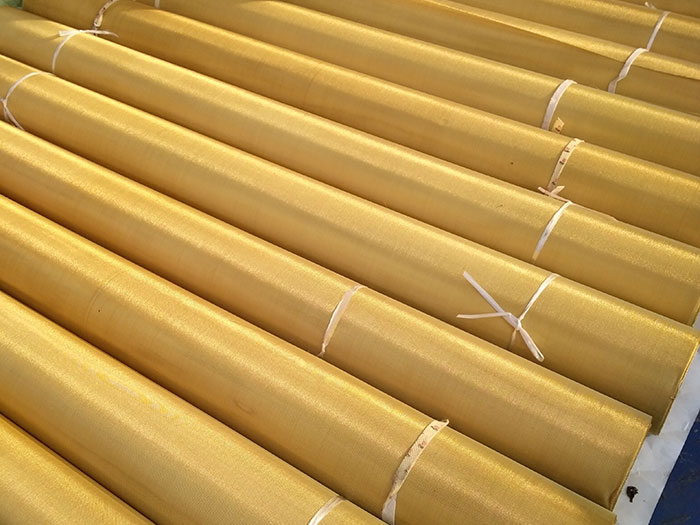

· Length of brass mesh/cloth: 10-50 m (can be customized).

Brass mesh and brass wire cloth specification
Product code	Mesh/inch	Wire diameter		Opening	Open area(%)
		mm	inch	mm
QN-214	2	2.030	0.800	10.67	70
QN-215	2	1.800	0.072	10.90	73
QN-216	2	1.600	0.063	11.10	76
QN-316	3	1.600	0.063	6.87	65
QN-418	4	1.194	0.047	5.16	66
QN-520	5	0.910	0.035	4.17	67
QN-822	8	0.711	0.028	2.46	60
QN-621	6	0.800	0.032	3.43	66
QN-622	6	0.711	0.028	3.52	69
QN-823	8	0.610	0.024	2.57	65
QN-824	8	0.559	0.022	2.62	68
QN-1023	10	0.635	0.025	1.90	56
QN-1024	10	0.559	0.022	1.98	61
QN-1025	10	0.508	0.020	2.03	64
QN-1224	12	0.584	0.023	1.47	52
QN-1226	12	0.457	0.018	1.66	61
QN-1425	14	0.500	0.020	1.31	52
QN-1426	14	0.457	0.018	1.36	56
QN-1427	14	0.417	0.016	1.40	59
QN-1626	16	0.457	0.018	1.12	50
QN-1629	16	0.345	0.014	1.24	61
QN-1630	16	0.315	0.012	1.27	64
QN-1826	18	0.45	0.018	0.96	46
QN-1827	18	0.432	0.017	0.97	48
QN-1830	18	0.315	0.012	1.10	60
QN-2030	20	0.315	0.012	0.96	56
QN-2032	20	0.247	0.011	0.88	61
QN-2230	22	0.315	0.012	0.84	53
QN-2430	24	0.315	0.012	0.74	49
QN-2631	26	0.295	0.012	0.68	49
QN-2831	28	0.295	0.012	0.61	45
QN-3027	20	0.407	0.016	0.86	46
QN-3030	30	0.305	0.012	0.53	40
QN-3032	30	0.247	0.011	0.57	49
QN-3034	30	0.234	0.009	0.61	52
QN-3233	32	0.254	0.010	0.54	46
QN-3434	34	0.234	0.009	0.51	47
QN-3634	36	0.234	0.009	0.47	45
QN-3835	38	0.213	0.008	0.46	46
QN-4031	40	0.254	0.010	0.38	36
QN-4036	40	0.193	0.008	0.44	48
QN-4038	40	0.152	0.006	0.46	58
QN-4236	42	0.193	0.008	0.41	46
QN-4437	44	0.173	0.007	0.40	49
QN-4637	46	0.173	0.007	0.38	47
QN-4837	48	0.173	0.007	0.38	47
QN-5032	50	0.230	0.009	0.28	30
QN-5037	50	0.173	0.007	0.34	43
QN-5039	50	0.132	0.005	0.38	55
QN-6036	60 × 50	0.193	0.008	-	-
QN-6037a	60 × 50	0.173	0.007	-	-
QN-6034	60	0.190	0.008	0.23	30
QN-6037b	60	0.173	0.007	0.25	35
QN-6040	60	0.122	0.005	1.30	83
QN-7039	70	0.132	0.005	0.23	40
QN-7041	70	0.112	0.004	0.25	48
QN-8035	80	0.140	0.006	0.18	31
QN-8040	80	0.122	0.005	0.20	38
QN-8042	80	0.102	0.004	0.22	46
QN-9041	90	0.112	0.004	0.17	36
QN-9043	90	0.091	0.004	0.19	46
QN-10036	100	0.114	0.005	0.14	30
QN-10042	100	0.102	0.004	0.15	36
QN-10043	100	0.091	0.004	0.16	41
QN-12043	120 × 108	0.091	0.004	-	-
QN-12044	120	0.081	0.003	0.13	38
QN-12045	120	0.071	0.003	0.14	44
QN-14045	140	0.071	0.003	0.11	37
QN-14046	140	0.061	0.002	0.12	44
QN-15046	150	0.061	0.002	0.11	41
QN-16046	160	0.061	0.002	0.10	38
QN-18046	180	0.061	0.002	0.08	32
QN-18047	180	0.051	0.002	0.09	41
QN-20047	200	0.051	0.002	0.08	36
* Mesh size and wire diameter can be customized according to special needs.
