Copper woven wire cloth can be dived into three types according to the component of the copper. They are red copper woven wire cloth, phosphor bronze woven wire cloth and brass woven wire cloth. Each type has their characteristics and application.
Copper woven wire cloth can be dived into three types according to the component of the copper. They are red copper woven wire cloth, phosphor bronze woven wire cloth and brass woven wire cloth. Each type has their characteristics and application.

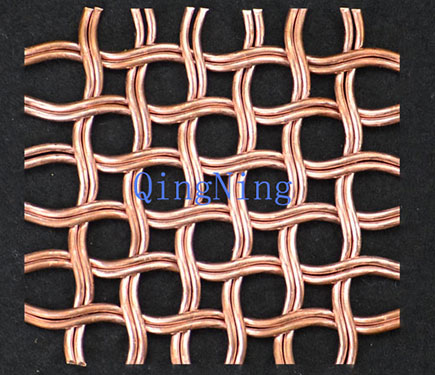

Red copper woven wire cloth is also called shielding net. The chemical component is 99.8% copper.The feature of the red copper is non-magnetic. So it can be used as the shielding net. The aperture size of the red copper woven wire cloth is from 5 mesh to 280 mesh.
Features of copper mesh and copper wire cloth
· Smooth surface and bright color.
· Good electricity and heat conductivity, good toughness.
· Non-magnetic, well sound-proof.
· Anti-sparking, anti-static.
· Resistant to corrosion, abrasion, rust, salt air, brine, acid, alkali.
· Low tensile strength, low hardness.
· Soft, flexibility, bent easily, weld easily.
· Easy to install, can be cut by scissors.
· Long service life.
Materials: pure copper proportion 99.9%.
General it is No need to be processed.
· Weaving style: plain weave, twill weave, dutch weave.
· Wire Diameter : 0.04mm-3mm
· Aperture size: 1 mesh to 200 mesh. For the electronic display is 10 - 60 mesh.
· Width of copper mesh/cloth: 0.5-3 m (can be customized).
· Length of copper mesh/cloth: 30 m (can be customized).
Applications of copper mesh and copper wire cloth
· Prevention rats, mice, birds and insects as screen for window and door.
· Used for filtering electron beam and electronic display screen.
· Used in traveling water screen, radio frequency interference shielding, sugar and marine application.
· Sieving and filtering granule, powder, porcelain clay and glass, chinaware printing, grain, filtering liquid and gas.
· Screen filtration in mine, metallurgy, construction, pharmacy, printing, petroleum, rubber, paper making and food and other industries.
· Used for gutter guards, plumbing screen, snail control, fireplace screen, RFI shielding, Faraday cage, house vents.
· Decorative mesh for house facades, walls, ceilings, lamps, cabinet.
· Used for sculptures and crafts.

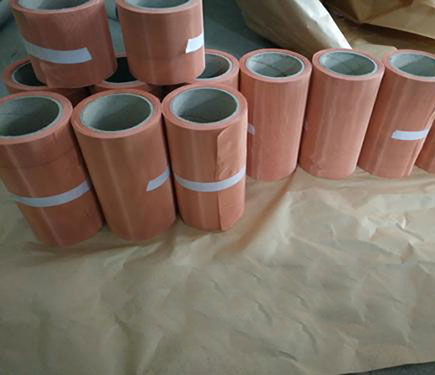

Package: Usually this type of mesh can be rolled, we pack it with fumigation-free case or metal case.
Production Time: we finished the 100 sq.m mesh within 10 days.
Delivery: Shipping by express. Available: Fed-ex, DHL, TNT, EMS and so on, will about 3-7 days.
Shipping by air: will about 2-3 days.
Shipping by sea: about 15-35 days.
