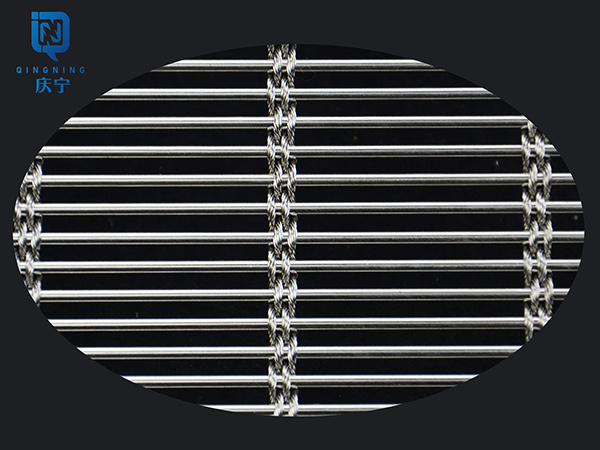

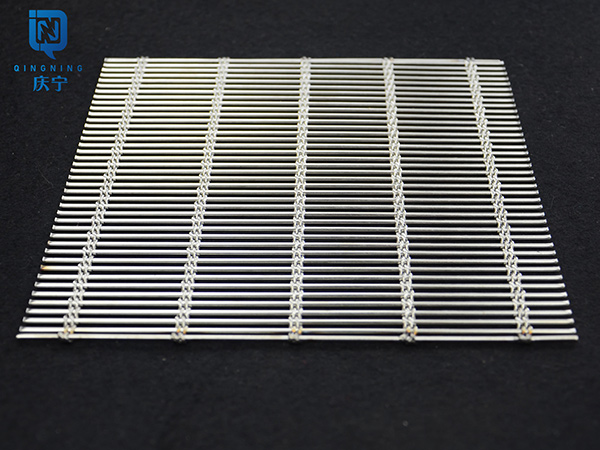

Architectural Flexible Mesh RMJ-436 is consist of 4 groups thin cables and rods.It is one of the top ten best-seller decorative wire meshes in QingNing Wire Mesh. This pattern is flexible in one direction.

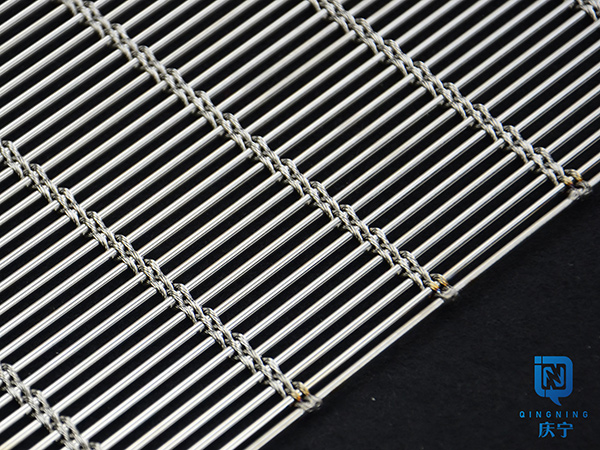

Architectural Flexible Mesh RMJ-436 is consist of 4 groups thin cables and rods.It is one of the top ten best-seller decorative wire meshes in QingNing Wire Mesh. This pattern is flexible in one direction. The raw material choosing high quality cable with mesh cable structure is 1*7 , this make the mesh is more durable, and will have a high strength in the vertical directions, flexible and cables, which make the architectural mesh is fit for partitions and ceilings with more shapes, like weaves and flat while applied for metal facades.Our company has 5 sets of flexible cable mesh machines for supply the demands our clients, the max. width of cable mesh will be 8 meters.
CHARACTERISTICS:
Flexible, strong, durable, beautiful, nonflammable, easy to install.
This type of architectural flexible mesh can be made of stainless steel, cooper, aluminum alloy wire, mild steel wires or mixed weaved.
Surface Finish:
1. PVDF coating(lacquer coating): mesh size can be bigger,suggest within 2mX12m.
2. Titanium PVD coating: mesh size limit within 1.8m X 4m.
3. Mixed weaved, just Ti-plating the rods. The mesh size is not limited, suggest width within 3.5m and length within 20 meters.
| SPECIFICATION FORM | ||||||||
| NO.S | Open Area% | Cable No.s | Cable Dia.(mm) | Cable pitch(mm) | Rod Dia.(mm) | Weft wire pitch(mm) | Thickness(mm) | Weight(kg/m2) |
| RMJ-436 | 44 | 4 | 1 | 36 | 2 | 4 | 4 | 7 |
Remarks:
★ The cable can be changed into SS wire, then it can be produced as panels.
★This mesh can be mixed weave with colorful Ti-plating wire and stainless steel cable.
★The mesh size can be custom-made.
★Suggest width: within 4 meters.
★Suggest Length: within 20 meters

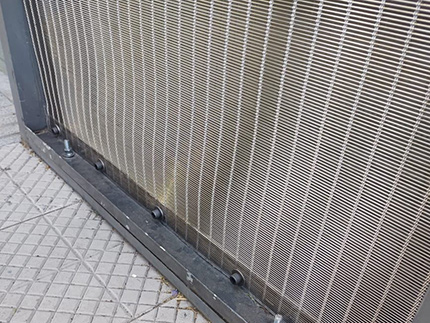

★Installation: with eye-bolt and round bar, frame or PUR edge.

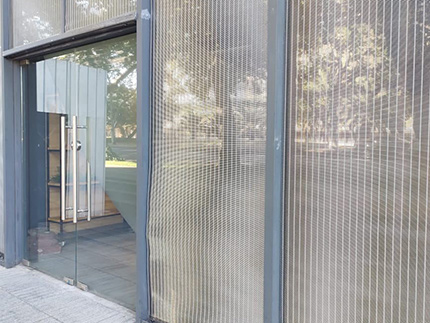

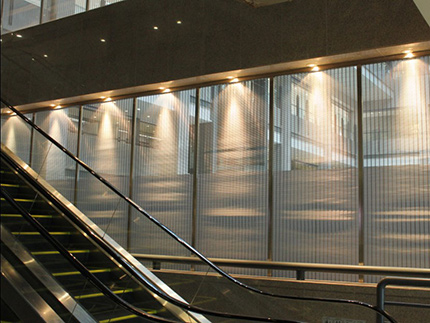

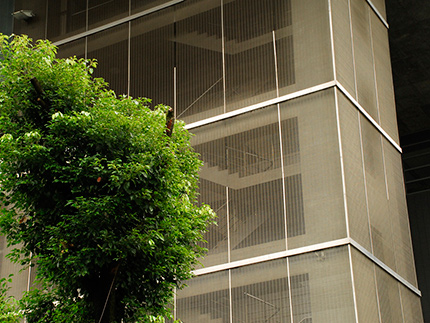

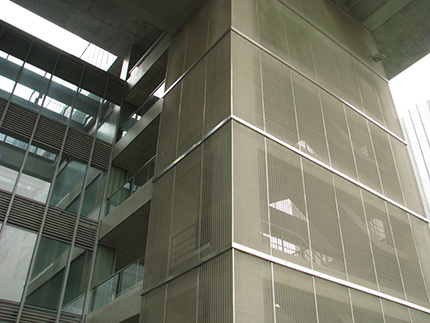

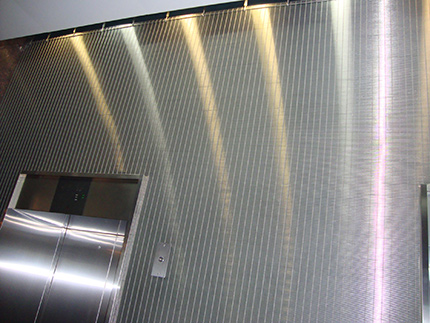

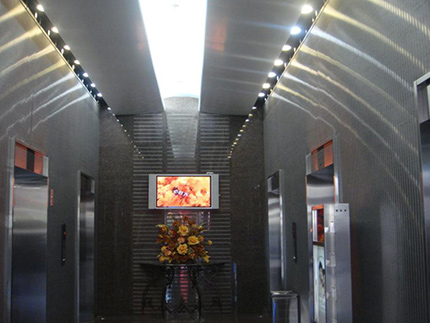

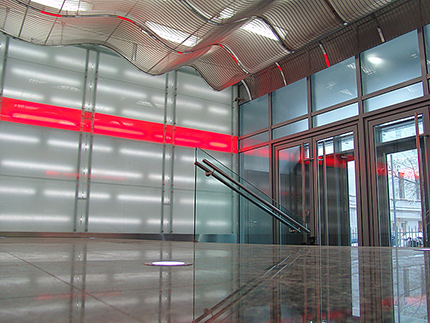

Flexible wire mesh 436 has a wide range of usages, it mainly applied into facades, ceilings, partitions, screens and elevator cabins in five-star hotel, sales office, superstore, office building, transportation junction and other large-scale public sites. The mesh size is custom made. The appearance of metal wire mesh is chic and elegant with vivid, forceful and various decoration effects. Covering indoor and outdoor applications, under diverse lights, the visual effects are abundant when it is viewed at different angles and time in different environments.

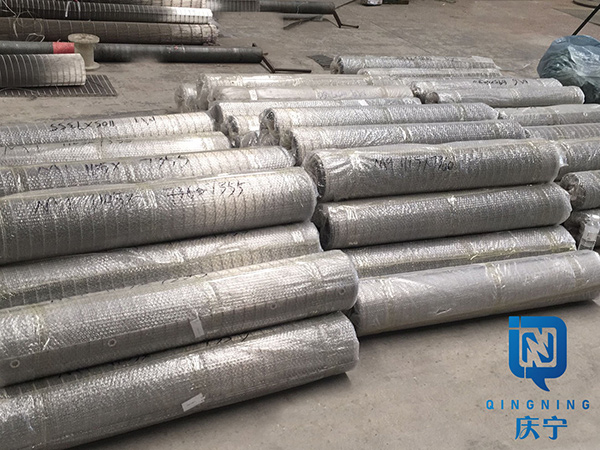

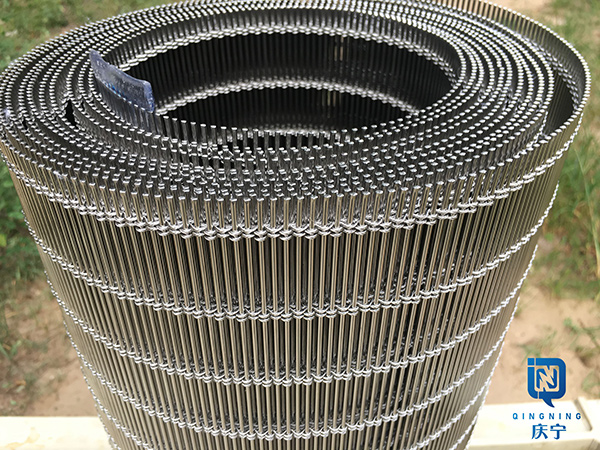

Package: Usually this type of mesh can be rolled, we pack it with fumigation-free case or metal case.
Production Time: we finished the 100 sq.m mesh within 15-20 days.
Delivery : Shipping by express:Available: Fed-ex, DHL, TNT, EMS and so on, will about 3-7 days
Shipping by air: will about 2-3 days
Shipping by sea: about 15-35 days.
