NO.S: RMJ-6516
Opening area: 0
Cable Dia.: 1.6mm×1groups
Cable pitch: 5mm
Rod Dia.: 1.5mm
Rod pitch: 1.5mm
Weight: 12kg/㎡
Usage: elevator interior panels, wall panels, ceiling panels, etc.

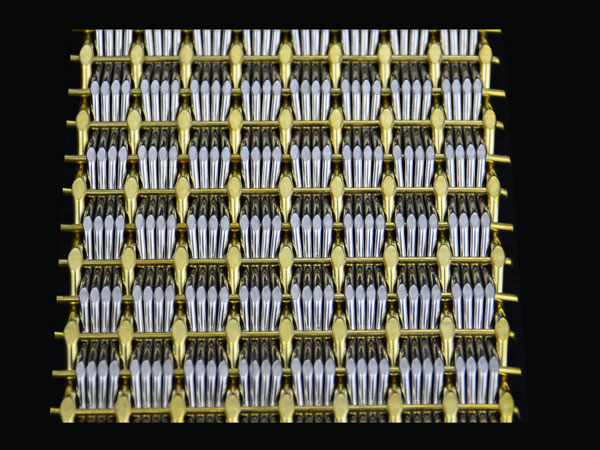

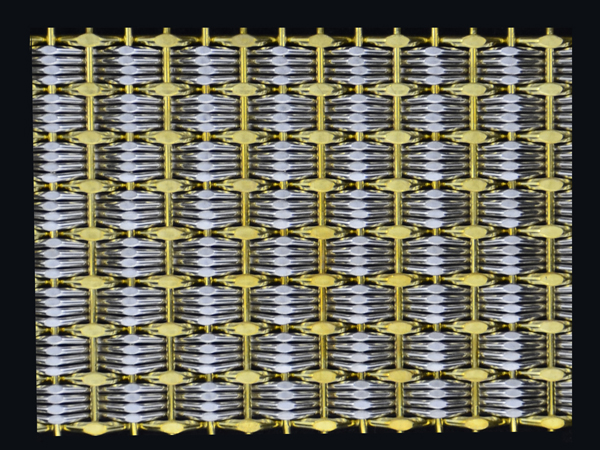

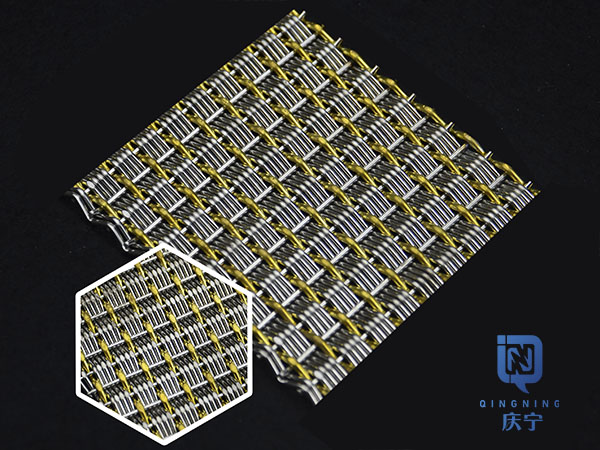

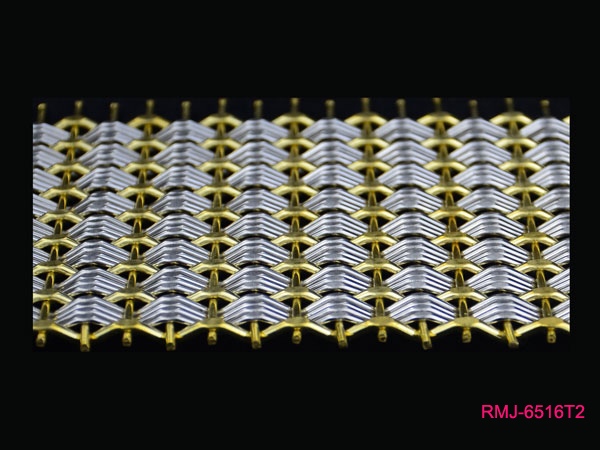

Elevator Cab Mesh RMJ-6516 is widely used in elevator car, elevator hall wall and lobby background in the wall decoration. Different wire, different weaved patterns, metal color, unique metallic texture of copper or stainless steel, all giving the elevator car or interior wall a high-end and amazing aesthetic interest.
Characteristics:
Metal Mesh Elevator Cladding has the features of no suffer dimensional size limitation, color is arbitrary, installation is simple, appearance is chic, elegance, special individual character, noble grade, adornment effect is vivid.
Elevator cab mesh can be made of stainless steel , cooper, brass wire or mixed weave.
Surface Finish: Usually keep nature color of brass wire with SS wire mixed weaved.it also can be made with all SS wire with titanium PVD coating( limited with 1.8mx3.5m) or copper plating.
| NO.S | Open area (%) | Warp Wire Diameter (mm) | Warp Wire Pitch (mm) | Weft Wire Diameter (mm) | Weft Wire Pitch (mm) | Thickness (mm) | Weight (kg/㎡) |
| RMJ-6516 | 5 | 1.5 | 6.7 | 1.5/2.0 | 8 | 4.3 | 12.7 |
Remarks:
★This mesh can be mixed weave with copper and stainless steel wire.
★Suggest width: within 4 meters.
★Suggest Length: within 10 meters
★Installation: with frame.

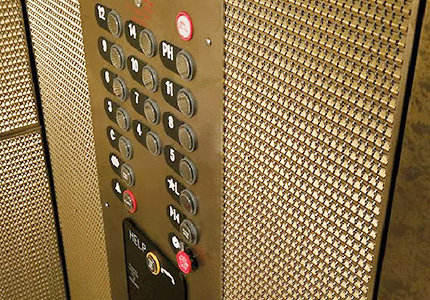

This type of elevator cab mesh are mainly used as elevator cab cladding or wall cladding interior decoration in buildings.
Package: Usually this type of mesh is used as panels, we can packed it with pallets.
Production Time: we finished the 100 sq.m mesh within15 days(advance if possible).
Delivery: Shipping by express:Available by Fed-ex, DHL, TNT, EMS and so on, shipping time is about 3-7 days.
Shipping by air: will about 3-4 days.
Shipping by sea: about 15-35 days.
