NO.S: RMJ-6210
Warp wire Dia.: 1.5mm
Warp wire pitch: 5mm
Weft wire Dia.: 2.3 mm
Weft wire pitch: 2.4mm
Weight: appr.17.4kg/㎡
Usage: Wall decoration, elevator cab caldding,ceiling panels.

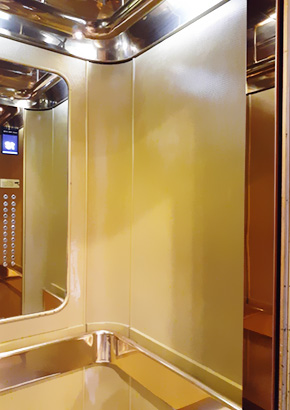

Metal Mesh Elevator Cladding (Elevator Cab Mesh) is widely used in elevator car, elevator hall wall and lobby background in the wall decoration. Different wire, different weaved patterns, metal color, unique metallic texture of copper or stainless steel, all giving the elevator car or interior wall a high-end and amazing aesthetic interest.
Characteristics:
Unique surface,compact design, antioxidant,colorfully, easy to install.
Elevator cab mesh can be made of stainless steel , cooper, brass wire or mixed weave.
Surface Finish: Usually Hairline processing, also available with lacquer coating, PVDF coating,Titanium PVD coating ( limited with 1.8mx3.5m) or copper plating.
| NO.S | Open area % | Warp Wire Diameter (mm) | Warp Wire Pitch (mm) | Weft Wire Dia. (mm) | Weft Wire pitch (mm) | Thickness (mm) | Weight (kg/㎡) |
| RMJ-6210 | 5 | 1.5 | 5 | 2.3 | 2.4 | 4.3 | 17.4 |
Remarks:
★The weft wire can be made with 1.8mm, 2.0mm or 2.3mm, all can be custom-made.

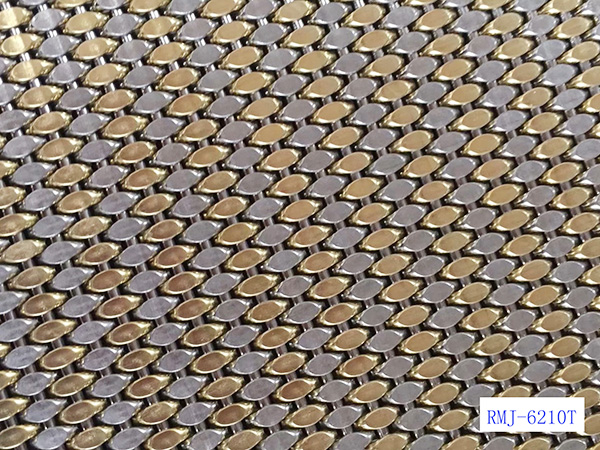

★This mesh can be mixed weave with copper and stainless steel wire.
★Suggest width: within 4 meters.
★Suggest Length: within 4 meters
★Installation: with frame.

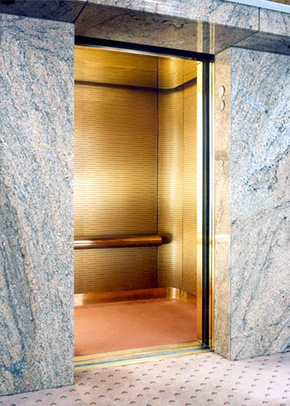

This type of elevator cab mesh are mainly used as elevator cab cladding or wall cladding interior decoration in buildings.
Package: Usually this type of mesh is used as panels, we can packed it with pallets.
Production Time: we finished the 100 sq.m mesh within15 days (advance if possible).
Delivery: Shipping by express:Available by Fed-ex, DHL, TNT, EMS and so on, shipping time is about 3-7 days.
Shipping by air: will about 3-4 days
Shipping by sea: about 15-35 days.
