NO.S: RMJ-6514
Opening area: 0
Cable Dia.: 1.5mm
Cable pitch: 4.8mm
Rod Dia.: 1.5mm
Rod pitch: 1.5mm
Weight: appr. 11.2kg/㎡
Usage: elevator cab cladding, wall cladding, furniture cladding,etc.

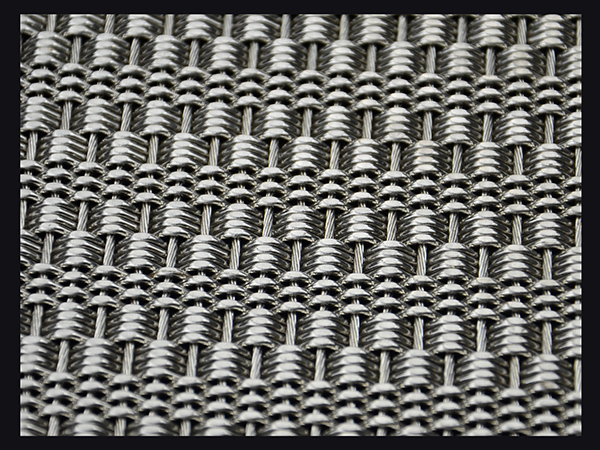

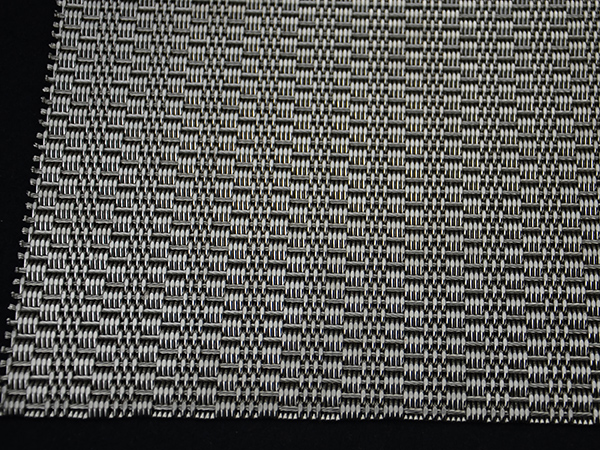

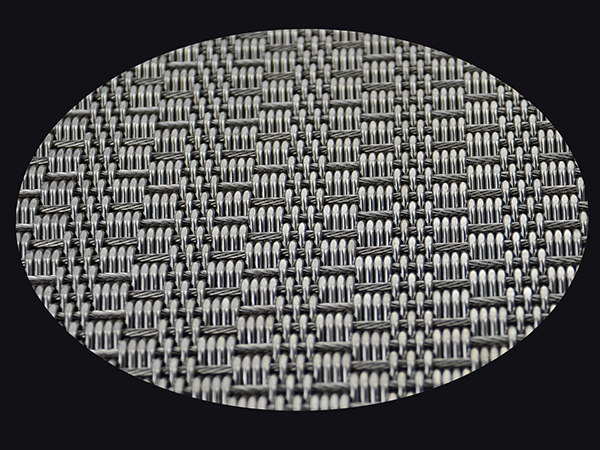

Elevator Cab mesh RMJ-6514 is one compact type mesh .Compact weft wire are connected with a regular arrangement. Warp wire is made by cable, it can make the mesh bent easily and make the mesh more flexible. This type of mesh are mainly used for wall cladding or elevator car cladding in door decoration in buildings.
Characteristics:
Unique wire arrangement, bright surface ,compact design, flexible, colorfully, easy to install.
Elevator Cab Mesh can be made of stainless steel , cooper, brass wire, aluminum alloy wire or mixed weaved.
Surface Finish: Available with lacquer coating, PVDF coating or Titanium PVD coating( limited 1.8mx3.5m). Also it can mixed weaved with stainless steel wire & copper wire.
| NO.S | Open area % | Cable Wire Diameter (mm) | Cable Wire Pitch (mm) | Weft Wire Diameter(mm) | Weft Wire Pitch(mm) | Thickness (mm) | Weight (kg/㎡) |
| RMJ-6514 | 0 | 1.5 | 5 | 1.5 | 1.5 | 4.3 | 12.3 |
Remarks:
★This mesh can be mixed weave with copper and stainless steel wire.
★Suggest width: within 4 meters.
★Suggest Length: within 10 meters
★Installation: with frame.

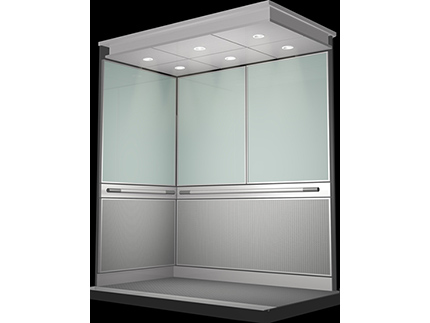

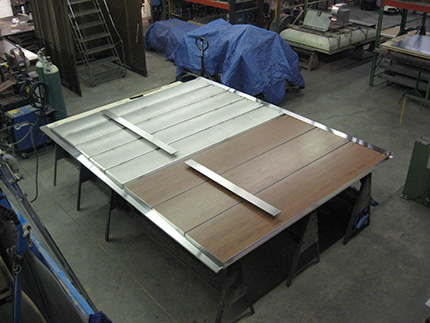

This metal mesh are mainly used as elevator cab cladding or wall cladding interior decoration in buildings.
Package: Usually this type of mesh is used as panels, we can packed it with pallets.
Production Time: we finished the 100 sq.m mesh within 15 days.
Delivery : Shipping by express:Available: Fed-ex, DHL, TNT, EMS and so on, about 3-7 days
Shipping by air: will about 2-3 days
Shipping by sea: about 15-35 days.
