Elevator Cab Mesh RMJ-8122T
Round Wire Diameter: 3mm
Round Wire Pitch: 6.1mm
Flat Wire: 12.6mmX1.2mm
Flat Wire Pitch: 12.6mm
Weight: appr. 19.6KGS/M2

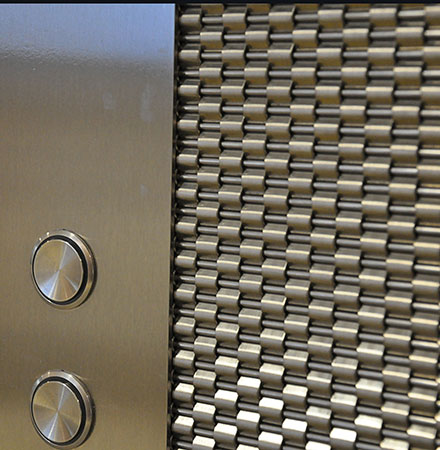

Elevator cab mesh(RMJ-8122T) is made of narrow sheets and round wire, they are widely used in elevator car, elevator hall wall and lobby background in the wall decoration. Different wire, different weaved patterns, metal nature color, unique metallic texture of copper and stainless steel, all giving the elevator car or interior wall a high-end and amazing aesthetic interest.
CHARACTERISTICS:
Unique surface, compact flat wire design, antioxidant, colorfully, easy to install.
Elevator cab mesh can be made of stainless steel, cooper, brass wire or mixed weaved.
Surface Finish:
Usually for this flat wire type, we can produce it with 2B sheet (sandblast effect), also bright sheet surface can be custom made. They are all available with lacquer coating, PVDF(Fluorocarbon paint) coating, Titanium PVD coating( limited with 1.8mx3.5m) or copper plating.
| NO.S | Open area % | Rod Diameter (mm) | Rod Pitch (mm) | Flat wire (mm) | Flat wire pitch (mm) | Thickness (mm) | Weight (kg/㎡) |
| RMJ-8122T | 0 | 3 | 6.1 | 12.6X1.2 | 12.6 | 5.5 | 19.6 |
Remarks:
★This mesh can be mixed weaved, all brass wire or all SS wire.
★Standard Size: 1.22mX2.44m(other size can be custom-made.)
★Installation: with frame.

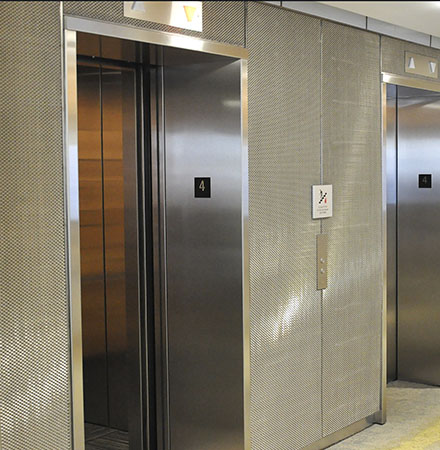

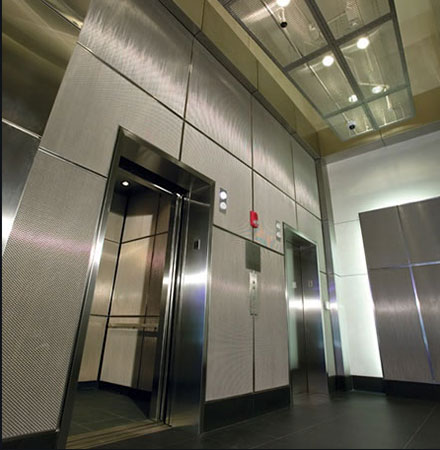

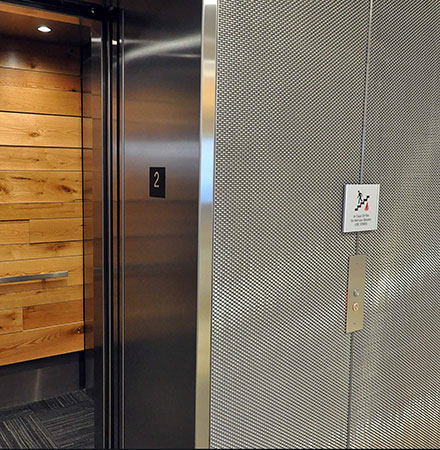

This type of elevator cab mesh are mainly used as elevator cab cladding or wall cladding interior decoration in buildings.
Package: Usually this type of mesh is used as panels, we can packed it with pallets.
Production Time: we finished the 100 sq.m mesh within 20 days(advance if possible).
Delivery : Shipping by express:Available by Fed-ex, DHL, TNT, EMS and so on, shipping time is about 7 days.
Shipping by air: will about 3-4 days
Shipping by sea: about 15-35 days.
