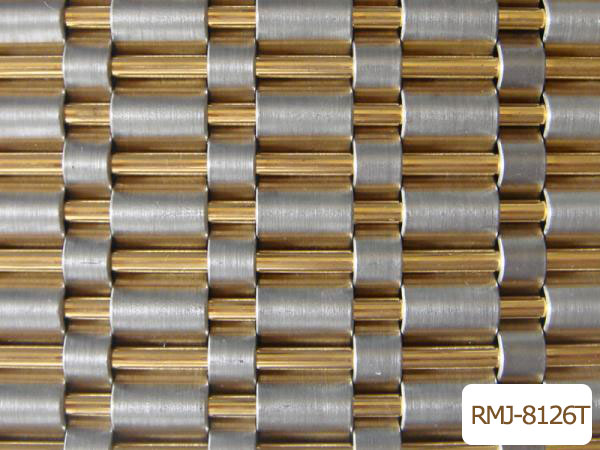

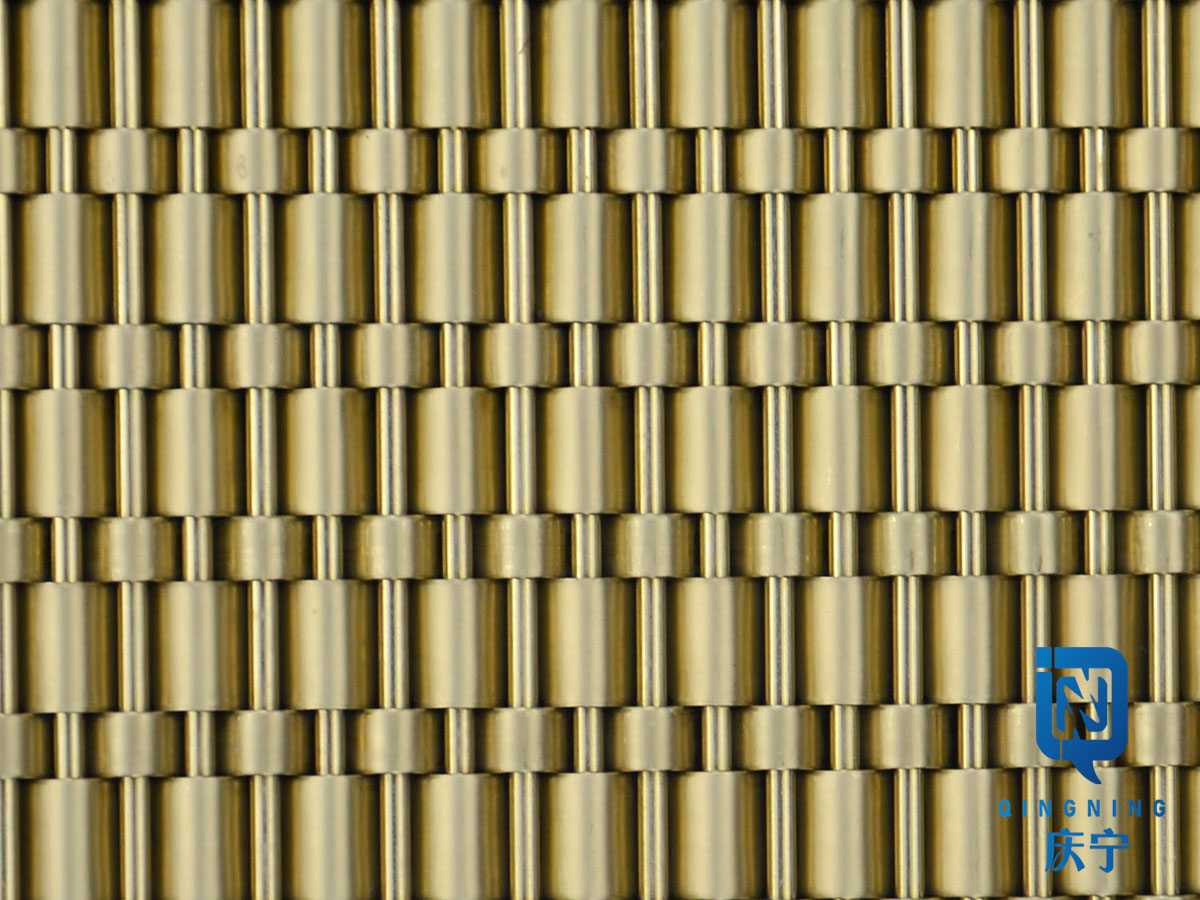

Elevator Cab Mesh RMJ-8126
Wire Diameter: 3mm
Wire Pitch: 6.1mm
Flat Wire: 12.6x1.2mm & 6.2X1.2mm
Flat Wire Pitch: 18.4mm
Weight: appr. 19.8kgs/m2
Elevator Cab Mesh(RMJ-8126) is made of two width narrow sheets, they are widely used in elevator car, elevator hall wall and lobby background in the wall decoration. Different wire, different weaved patterns, metal color, unique metallic texture of copper or stainless steel, all giving the elevator car or interior wall a high-end and amazing aesthetic interest.
CHARACTERISTICS:
Unique surface, compact flat wire design, antioxidant, colorfully, easy to install.
Elevator cab mesh can be made of stainless steel, cooper, brass wire or mixed weaved.

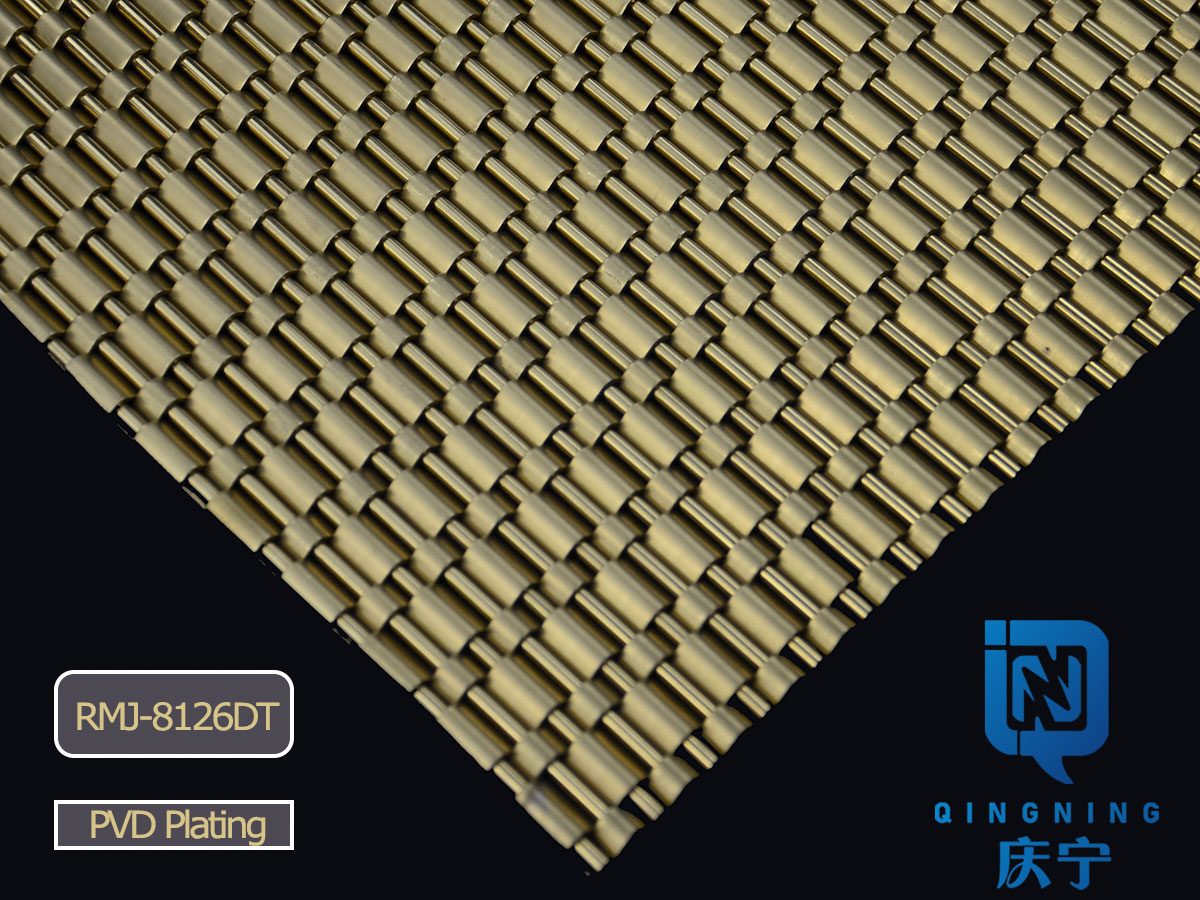

Usually for this flat wire type, we can produce it with 2B sheet (sandblast effect), also we can make it with bright sheet. They are all available with lacquer coating, PVDF coating, Titanium PVD coating( limited with 1.8mx3.5m) or copper plating.
| NO.S | Open area % | Rod Diameter (mm) | Rod Pitch (mm) | Flat wire (mm) | Flat wire pitch (mm) | Thickness (mm) | Weight (kg/㎡) |
| RMJ-8126 | 0 | 3 | 6.1 | 12.6+6.3 | 18.9 | 5.5 | 19.8 |
Remarks:
★This mesh can be mixed weaved, all brass wire or all SS wire.
★Standard Size: 1.22mX2.44m(other size can be custom-made.)
★Installation: with frame.

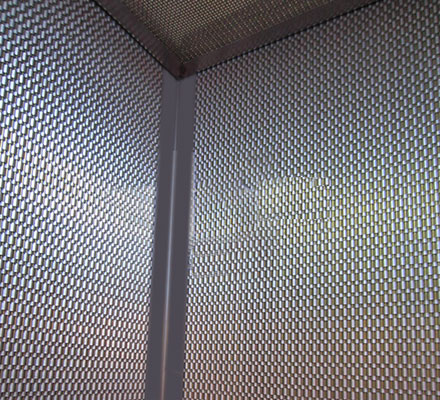

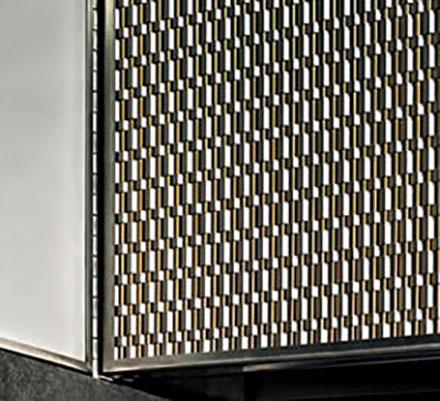

This type of elevator cab mesh are mainly used as elevator cab cladding or wall cladding interior decoration in buildings.
Package: Usually this type of mesh is used as panels, we can packed it with pallets.
Production Time: we finished the 100 sq.m mesh within15 days(advance if possible).
Delivery : Shipping by express:Available by Fed-ex, DHL, TNT, EMS and so on, shipping time is about 7 days.
Shipping by air: will about 3-4 days
Shipping by sea: about 15-35 days.
